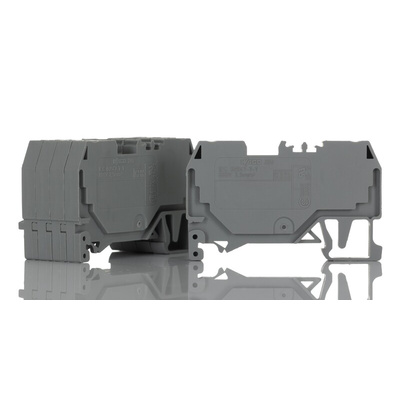

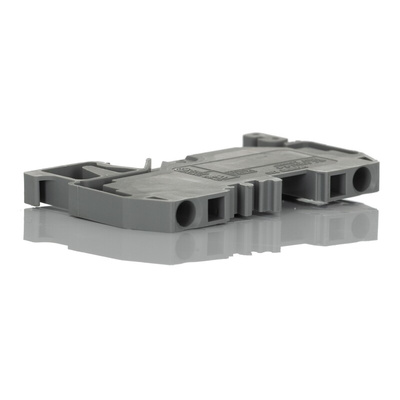

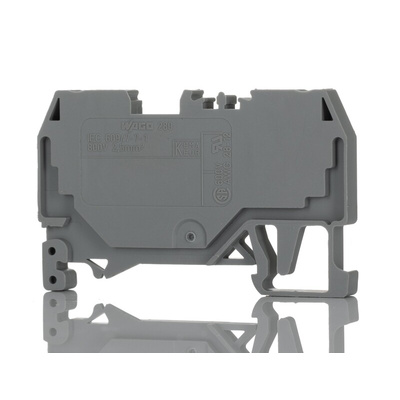

280-901, Wago 280 Series Grey Feed Through Terminal Block, 2.5mm², 1-Level, Cage Clamp Termination

Wago Feed-Through Terminal Block, 800V Voltage Rating,24A Current Rating - 280 Series - 280-901

When you need to manage the wiring in your high-voltage energy installations, reach for this feed-through terminal block from Wago. It features protection against short circuits and overcurrent to safeguard personnel and equipment against hazards. Thanks to its current rating of 24A and its voltage rating of 800V, it stands up to use in heavy-duty electrical systems. The unit's measured shock voltage of 8kV also makes it a good choice for industrial settings. For mounting in a snap, clip this unit onto your DIN rail.

Features & Benefits

• Accepts a wire size range from 28 to 12AWG to suit many connections
• Front-entry wiring allows for easy installation in areas where space is limited
• Cage clamp technology cuts down on wiring time
• Compact dimensions of 53 (L) x 5 (W) x 28mm (H) mean it's a sure fit for crowded setups
• Light weight of 5.59g to place minimal strain on your equipment

Applications

• HVAC system controls
• Power supplies
• Energy management

How many connection points does this terminal block have?

There are two connection points, so you can hook it up to more than one device.

280 Series

2-conductor through terminal block Data Sheet

Datasheet - 280-901
