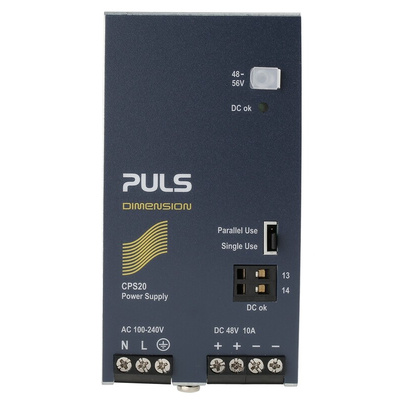

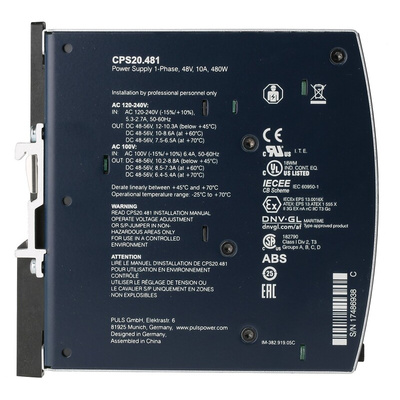

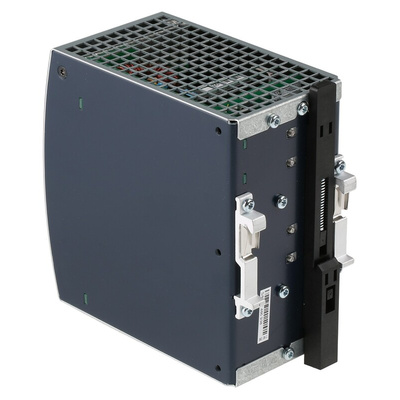

PULS DIN Rail Power Supply
The PULS Dimensions C- Line series of DIN rail switch mode power supply has an output current rating of 10A at 48VDC. It has a single-phase input voltage ranging between 100VAC and 240VAC with active power factor correction(PFC). These are cost optimised power supplies specifically designed with uncompromised quality and reliability for high-performance. This power supply has a specified life expectancy of the electrolytic capacitor of 50,000 hours. It has high immunity to power surges as well as low electromagnetic emission. High immunity makes it suitable for almost every situation.
Note:
Power de-rating @ +60 to +70°C.
Features and Benefits
20% output power reserves up to 45°C continuously allowed
Cost effective
DC-OK relay contact
Efficiency up to 93.9%
Excellent partial load efficiency
Large screw terminals
Minimal inrush current surge
Operation temperature ranging between -25°C and 70°C
Power rating is 480W
Ripple factor and noise is 50mV
Safe HiccupPLUS overload mode
Slim design
Wide range auto select input
Applications
Communication and instrumentation equipment
Industrial control
Office
Certifications
ATEX approved
EN
IEC
IECEX approved
SELV
UL approved
