RS PRO PIR Sensor

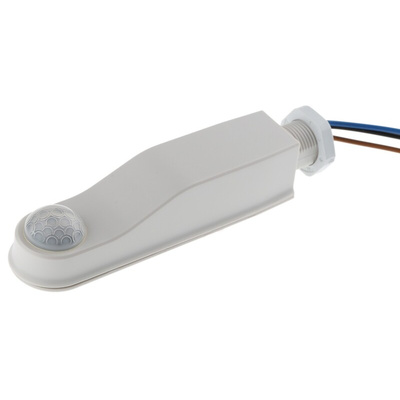

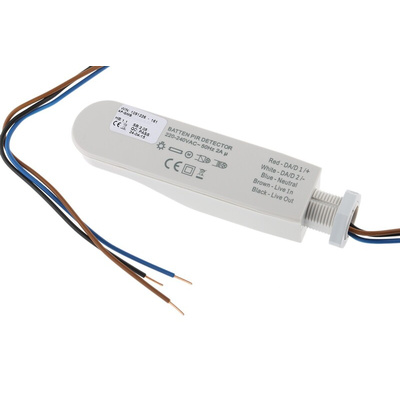

RS PRO 807 mW Batten Mount Presence Detector, PIR, Ceiling Mount, 230 V ac

Designed for mounting onto a batten-style luminaire, you can use this miniature passive infrared (PIR) presence detector to turn lights on and off automatically. It will switch on and off all kinds of lighting, including incandescent, fluorescent and LED bulbs.

The batten-mounted PIR detector activates the light when it senses movement and switches it off after a 10-minute time-out period once the area is vacated. It's supplied with a selection of fixing washers, so you can secure it to the outside of a variety of luminaires. The casing is IP65-rated, meaning it's dust-tight and protected from water spray.

This switch is CE certified as safe and meets EMC-2004/108/EC on electromagnetic compatibility. It conforms to LVD-2006/95/EC as a safe low-voltage appliance and complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, meaning it won't harm equipment via electrostatic discharge.

This type of lighting controller is commonly used in offices and warehouses.

Features and Benefits

• Batten-mount presence detector
• Passive infrared (PIR) sensor
• Turns off lighting 10 minutes after the area is vacated
• Ceiling mounting
• IP65-rated as dust tight
• Time delay of 10 minutes
• Range of 16 m
• Time delay of 10 min
• Voltage rating of 230 V ac
• Operating frequency of 50 Hz
• Power consumption of 799 mW (on)/807 mW (off)
• Weight of 0.1 kg
• Length of 144 mm
• Height of 28 mm
• Width of 33 mm
• Meets EMC-2004/108/EC on electromagnetic compatibility
• Compliant with LVD-2006/95/EC as a safe low-voltage appliance
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge
• RoHS compliant on hazardous substances
