RS PRO PIR Sensor

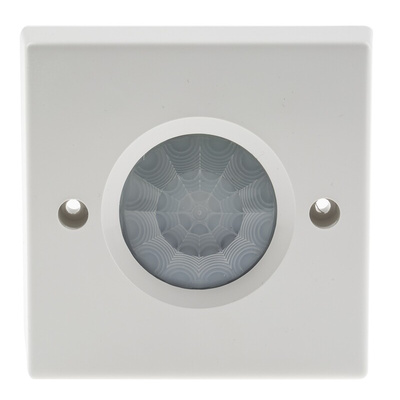

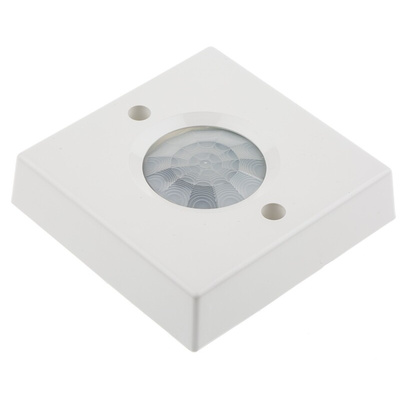

RS PRO Ceiling PIR Presence Detector, Ceiling Mount, 220 → 240 V ac

Commonly used in warehouses and offices, the RS PRO ceiling mount presence detector box lets you control lighting, heating or ventilation appliances automatically. A passive infrared (PIR) sensor detects when someone moves through the room and turns the appliance on. Once the area is vacated, there is a time-out period which can be set between 10 seconds and 30 minutes. The appliance will then turn off.

When used with lighting applications you can save even more energy, as lights only turn on when natural light goes below a preset level. The ceiling PIR detector has a casing of flame-retardant acrylonitrile butadiene styrene (ABS) thermoplastic and an IP55 rating for water and dust protection.

This presence detector is CE-certified and complies with EMC-2004/108/EC on electromagnetic compatibility and ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge. It also meets LVD-2006/95/EC standards as a safe low-voltage appliance.

Features and Benefits

• PIR presence detector box
• Automatic switch for lighting, heating or ventilation appliances
• Class 2 switch
• Ceiling mounting
• Casing made from ABS thermoplastic
• Time delay of 10 seconds to 30 minutes
• Length of 86 mm
• Width of 86 mm
• Height of 19 mm
• Voltage rating of 220-240 V
• CE-certified as safe
• Compliant with EMC-2004/108/EC on electromagnetic compatibility
• Conforms to LVD-2006/95/EC as a safe low-voltage appliance
• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 on electrostatic discharge
• RoHS compliant on hazardous substances
• Operating temperature range of -10˚C to +35˚C
