RS PRO PIR Sensor

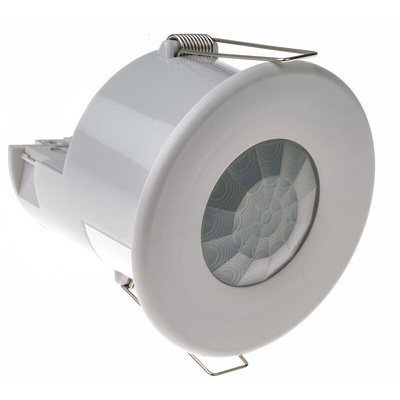

RS PRO 895 mW Ceiling PIR Detector Absence Detector, Presence Detector, PIR, Ceiling Mount, 230 V ac, 76 mm Diameter

The RS PRO 895 mW detector and absence detector lets you automate your lighting and electrical appliances. It's commonly found across home and business settings, including offices, storage facilities and retail units.

This device is fitted with both a PIR (passive infrared) sensor to detect movement and a light level sensor that measures when it's getting dark. It comes with an optional manual setting and can also be programmed using an IR (infrared) handset (supplied separately). The output channel consists of a mains voltage relay for simple switching on/off. It can take maximum electricity loads of 10 A for either lighting or ventilation.

As part of the quality RS PRO range, this product has been tested by engineers for safety and reliability. It has an IP40 rating for protection and is made from thermoplastic, a flame-retardant material.

Features and Benefits

• Absence detector/presence detector
• Passive infrared (PIR) sensor
• Ceiling mounted
• Voltage rating of 230 V AC
• Maximum load of 10 A of lighting and/or ventilation
• Power consumption of 895 mW
• Diameter 76 mm
• Width 64.9 mm
• Height 61.2 mm
• IP40 rating for protection
• Made from flame-retardant ABS and PC/ABS thermoplastic materials
• CE-certified for safety
• EMC-2004/108/EC and LVD-2006/95/EC compliant for safety and quality

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
