RS PRO PIR Sensor

RS PRO PIR Sensor

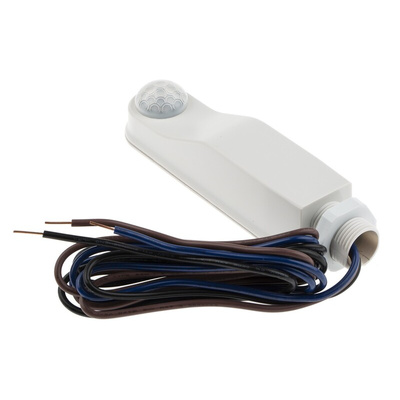

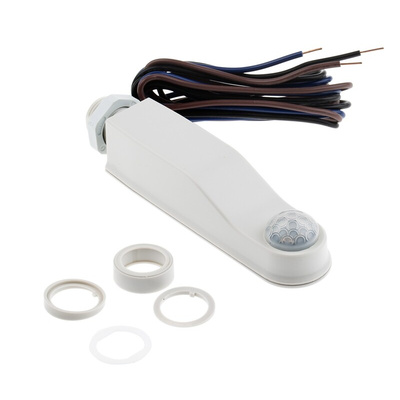

Ensure greater energy savings at your workspace with this passive infrared (PIR) sensor from RS PRO. It's designed to provide automatic control of lighting loads and works well with incandescent, fluorescent, compact fluorescent and LED (light-emitting diode) lighting.
Once connected to your lighting system, the unit instantaneously switches on the light once it detects any movement in the vicinity. A dimming controller detects the amount of sunlight and operates the light based on brightness levels. You can also adjust a timer from 10 seconds to 99 minutes for turning off the lights automatically.
This PIR sensor has an Ingress Protection (IP) rating of IP65, so it can withstand dust and low-pressure jets of water. This makes it suitable for use in indoor and outdoor setups. It's supplied with a remote controller for manual switching. The versatile unit can be used for lighting long corridors, meeting rooms and cabin spaces.

Features and Benefits

• Presence detector controller type
• Dimmable
• Dimming protocol of 1 to 10 V, DALI (Digital Addressable Lighting Interface), DSI (Digital Serial Interface)
• Height of 28 mm
• Length of 144 mm
• Width of 33 mm
• Ceiling mounting type
• Power consumption of 817 mW
• Range of 16 m
• PIR sensor type
• CE Certified, EMC (electromagnetic compatibility)-2004/108/EC, LVD-2006/95/EC Compliance standards met
• Time delay of 10 s to 99 min
• Voltage rating of 230 V AC
