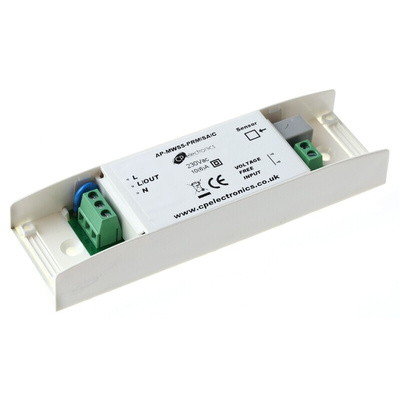

RS PRO Microwave Miniature Microwave Detector

Miniature Microwave Presence Detector

This series of miniature PIR (passive infrared) presence detectors provide automatic control of lighting loads with optional manual control.
Three models are available: premium, direct dim, and analogue dim all of which will switch incandescent, fluorescent and compact fluorescent lighting. The direct dim variant controls DALI or DSI digital dimming ballasts whilst the analogue dim variant controls 1-10V dimming ballasts.
The unit detects movement using a PIR sensor and turns the load on. When an area is no longer occupied the load will switch off after an adjustable time out period.

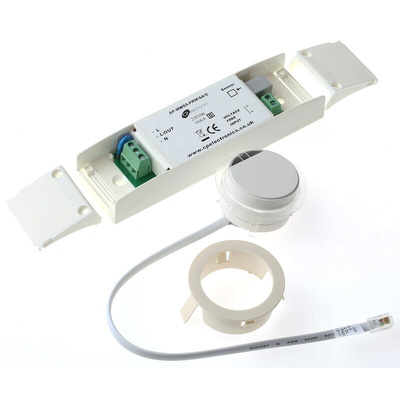

These units come complete with clips allowing unobtrusive flush mounting into ceiling tiles or solid ceilings.
All functionality is fully programmable using an IR handset.

Microwave Sensor detects movement
Receives commands from an IR handset
Light level sensor measures light level
IP40 rated
Type Class 2

Occupancy Lighting Controllers

Lighting controllers designed for use within offices and warehouses. Available with dual sensors for detecting ambient light and physical movement. Outputs are in the form of switch contacts (standard types). A dimming control output version is available for use with electronic ballasts. This can control up to 10 ballasts, ideal where daylight compensation is required with constant ambient light.
