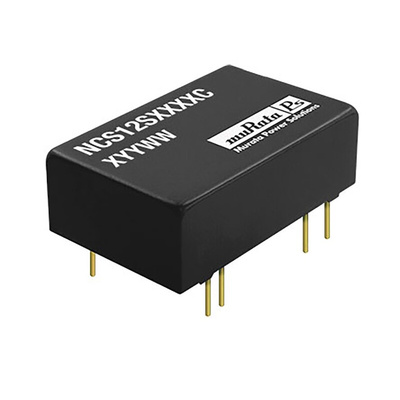

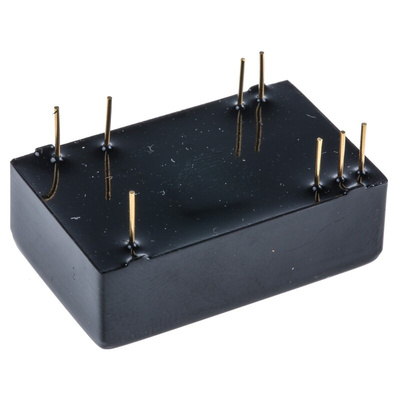

NCS12S1212C, Murata Power Solutions NCS12 DC-DC Converter, 12V dc/ 1A Output, 9 → 36 V dc Input, 12W, Through Hole, +85°C Max, Преобразователь

Murata 12W DIP Single Output Regulated Isolated DC-DC Converter - NCS12 Series

The Murata PS NCS12 series of DC/DC converters offers single & dual output voltages from input voltage ranges of 9-36V and 18-75V. This power converter is housed in an industry standard package with a standard pinout. The DC/DC converter is packaged in a metal case for improved EMI shielding and is also encapsulated for superior thermal performance. Applications include telecommunications, battery powered systems, process control and distributed power systems.

4:1 Wide range voltage input
Operating temperature range -40°C to 85°C
Typical load regulation from 0.05%
1.5k VDC Isolation
3.3V, 5V, 12V & 15V outputs
UL 94V-0 Package materials
No electrolytic capacitors
Thermal shutdown
Under voltage lock out
Current fold back

Approvals

UL60950

Murata Power Solutions - DIP

Datasheet 2018 update
