7703, Keithley Data Acquisition Coupler for Use with 2700 Series, 2701 Series, 2750 Series

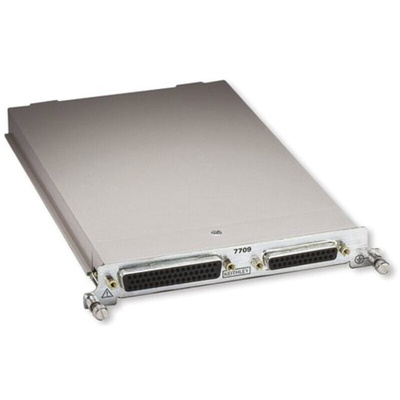

Keithley 7703 32-channel High Speed Differential Multiplexer Module

The Keithley 7703 plug-in module offers 32 channels of 2-pole multiplexer switching or 16 channels of 4-pole multiplexer switching that can be configured as two independent banks of multiplexers. Non-latching reed relays provide high speeds and are designed for 300 volt, 500 mA; 10VA. The relay closures are stored in onboard memory. Module uses include RTD and thermistor temperature applications. The 7703 is for use with Keithley systems 2700 ( 760-0354 , 7600357 ), 2701 ( 760-0351 ) and 2750 ( 760-0360 ).

32 channels for general purpose measurements
Relay actuation time of less than 1ms for high-speed scanning
2-wire or 4-wire measurement
Two 50-pin female D-sub connectors are standard for hook-up and quick teardown

Supplied with

Mating connectors (2) with solder cup (Model 7788)

Keithley 7700 20-channel Differential Multiplexer Module

7703 32-channel, High Speed Differential Multiplexer Module Data Sheet
