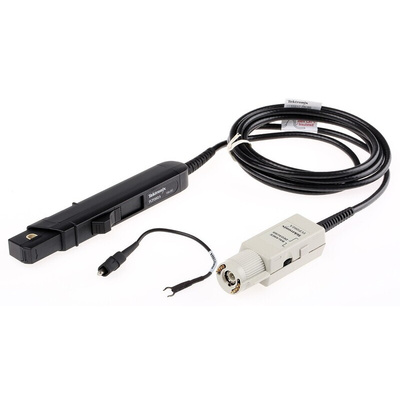

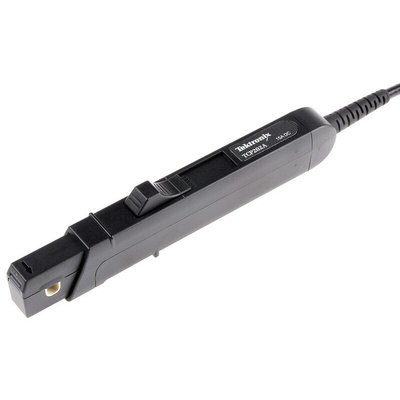

TCP202A, Tektronix TCP202 Oscilloscope Probe, Probe Type: AC/DC 50MHz

Tektronix AC/DC Current Probes TCP0020, TCP2020 & TCP202A

Tektronix current probes include: TCP0020 ( 796-2696 ); TCP2020 ( 796-6705 ); TCP202A ( 796-2687 ). Their applications cover power supplies, semiconductor devices, power inverters/converters, electronic ballasts, industrial/consumer electronics, mobile communications, motor drives and transportation systems.

Easy to use and accurate AC/DC current measurements
Core jaw diameter of 5mm (0.2 in)
Accurate measurement of current levels as low as 10mA per division
High accuracy with typically less than 1% DC gain error
Split-core construction allows easy circuit connection
Low noise and DC drift

Connects directly to oscilloscopes with the TekVPI probe interface
Provides automatic units scaling and readout on the oscilloscope display
One-button Degauss and AutoZero control for ease of use
Easy access to scope-displayed probe menu for probe setup control and operating status information
Remote control capability through TekVPI oscilloscope

TCP0020

For use with Tektronix DPO2000 & MSO2000
BNC output connects to most oscilloscopes and other measuring equipment (>100 kΩ termination required)

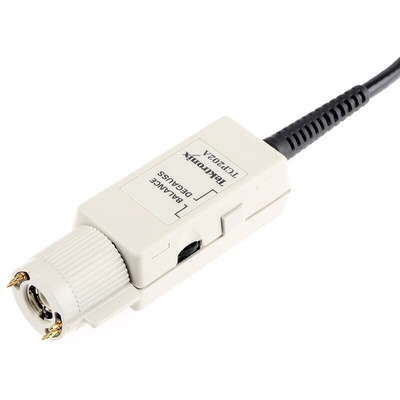

Degauss button and thumbwheel for DC offset adjustment

TCP2020

Connects directly to oscilloscopes with the TekVPI probe interface
Provides automatic units scaling and readout on the oscilloscope display
Degauss button and thumbwheel for DC offset adjustment

TCP202A

Supplied with

Probe ground lead 6 in (152.4 mm) long, Nylon carrying case, instruction manual (English)
