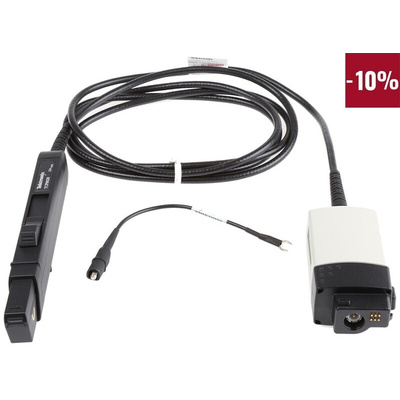

Tektronix TCP0020 Oscilloscope Probe, AC/DC Type, 50MHz, Щупы для осциллографа

Tektronix Current Probe

The Tektronix is a high-performance and easy-to-use AC/DC current probe designed for use with a variety of oscilloscopes. It can be used with any instrument with BNC inputs and greater than >100 kΩ input termination.
Inclusions:

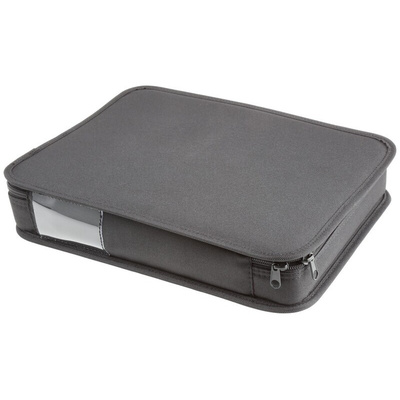

Probe ground lead 6in (152.4mm) long, a nylon carrying case, and an instruction manual (English).

Features and Benefits

Easy-to-use and accurate AC/DC current measurements
DC to greater than 50MHz bandwidth
Core jaw diameter of 5mm (0.2in)
Accurately measures current levels as low as 10mA per division
High accuracy with typically less than 1% DC gain error
Split-core construction allows easy circuit connection
Low noise and DC drift
20ARMS maximum current capability
100A peak pulse current capability
Connects directly to oscilloscopes with the TekVPI™ probe interface
Provides automatic units scaling and readout on the oscilloscope display
One-button degauss and autozero control for ease of use
Easy access to scope-displayed probe menu for probe set-up control and operating status information
Remote control capability through TekVPI oscilloscope

Applications

Power supplies
Semiconductor devices
Power inverter/converters
Electronic ballasts
Industrial/consumer electronics
Mobile communications
Motor drives
Transportation systems

Certifications

CAT II 150V
CAT II 300V
CAT II

AC/DC Current Probes TCP0020 TCP2020 TCP202A Data Sheet
