Tektronix P6015A Oscilloscope Probe, High Voltage Type, 75MHz, 1:1000, Щупы для осциллографа

Accessories for TDS 1000 series

Tektronix Probes for TDS1000 Series: TCP303 and TCP305 current probes suitable for measuring AC or DC; P6015A high voltage passive probe.

Tektronix P6015A High Voltage Oscilloscope Probes – Single Ended

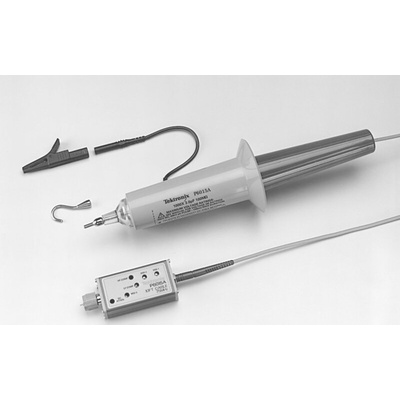

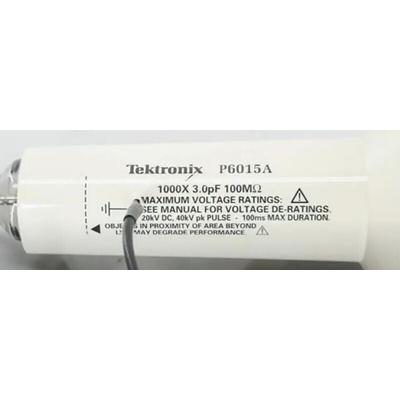

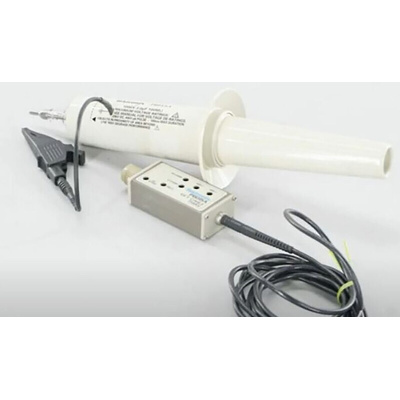

The Tektronix high-voltage probe is a heavy-duty high-performance probe that can measure voltages over 2.5 kV. The P6015A probe can measure DC voltages up to 20kVrms and pulses up to 40kV (peak, 100 ms duration). The bandwidth enables you to capture fast, high-voltage signals. The probe uses an environmentally safe silicone compound for a dielectric and never needs refilling.

Features and Benefits

Bandwidth is 75MHz
Attenuation ratio is 1:1000
Input impedance is 1Mohmll 20pF
Rise time is 4nS
Maximum common mode input voltage is ±20kV
Maximum input voltage DC or RMS is 20KV
Wide compensation range (7pF to 49pF)

Applications

High voltage single ended probes are usually used for measuring ground referenced signals. These probs can in found in:
Power supply design
Design motor drive
Electronic ballast
Power semiconductors
Switch mode control
UPS systems
Power converters

Certifications

CE certified
ISO certified

Supplied with
type":"Supplied with",

Hook probe tip
Banana plug tip
Crocodile clip
Ground lead
Carrying case
Instruction manual

TDS1000/2000

Instruction Manual

Datasheet - P6015A
