Tektronix TCP2020 Oscilloscope Probe, DC to >50MHz, BNC Connector, Щупы для осциллографа

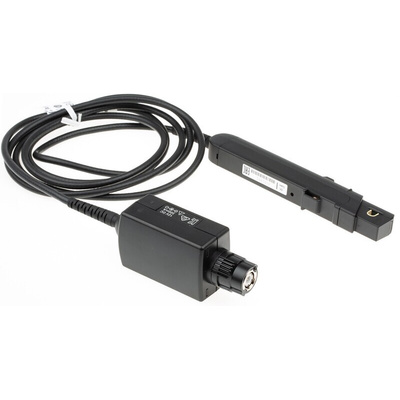

Tektronix AC/DC Current Probe

The Tektronix is a high-performance, easy-to-use AC/DC probe designed for use with a variety of oscilloscopes. It is used with any instrument with BNC inputs and greater than >100 kΩ input termination.
Inclusions:
Probe ground lead 6in (152.4mm) long, a nylon carrying case, and an instruction manual (English).

Features and Benefits

Easy-to-use and accurate AC/DC current measurements
DC to greater than 50MHz bandwidth
Core jaw diameter of 5mm (0.2in)
Accurately measures current levels as low as 10mA per division
High accuracy with typically less than 1% DC gain error

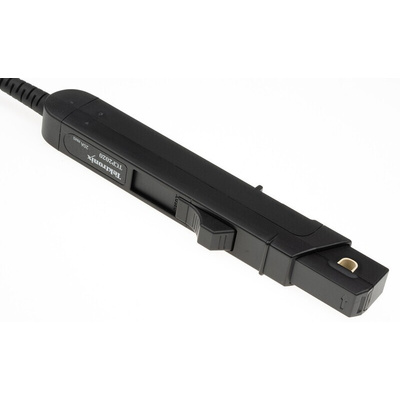

Split-core construction allows easy circuit connection
Low noise and DC drift
20A RMS maximum current capability
100A peak pulse current capability
10mA/mV sensitivity
BNC output connects to most oscilloscopes and other measurement equipment (>100 kΩ termination required)

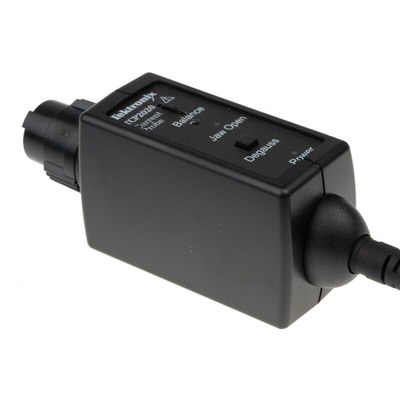

Degauss button and thumbwheel for DC offset adjustment

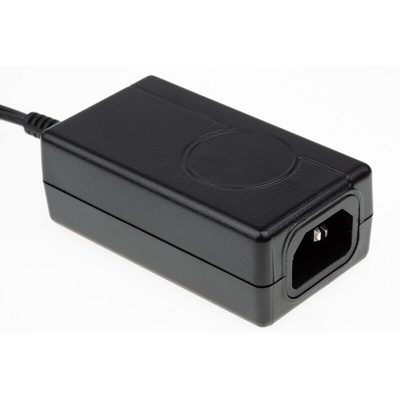

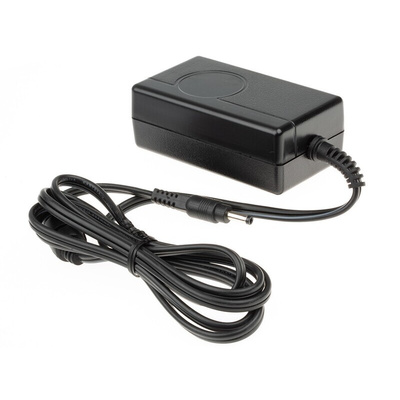

Powered by an AC adapter

Applications

Power supplies
Semiconductor devices
Power inverter/converters
Electronic ballasts
Industrial/consumer electronics
Mobile communications
Motor drives
Transportation systems

Certifications

CAT II 150V
CAT II 300V
CAT II

AC/DC Current Probes TCP0020 TCP2020 TCP202A Data Sheet
