KS20-10HAAR020-01, West Instruments KS20 PID Temperature Controller, 48 x 48mm, 6 Output Relay, SSR, 100 → 240 V ac Supply Voltage, Регулятор температуры

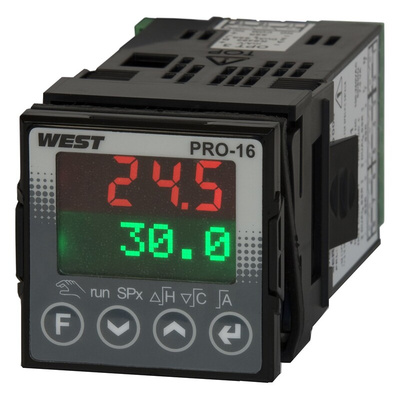

West Pro-16 Temperature Controller

A compact, fully featured controller for demanding applications.

Pro-16 is the only controller of its size, flexible with up to 6 outputs, 2 digital inputs, a remote setpoint input, RS485 communications* and linked to best in class Blue Control software.

The Pro-16 offers many integrated features for unrivalled performance such as two PID sets to ensure reliable control over a wide setpoint range and separate PID for heat and cool strategies for optimized control and stability. Extensive flexibility is offered with 1 universal inputs and 1 optional, up to 4 digital inputs, 6 outputs and an inbuilt profiler with 16 profiles x 16 segments.

A highly visible display is offered with 1 line of 7 segment LED display and 1 line of text display.

• Up to 16 profiles with x 16 segments with 4 event tracks
• BluePort® Front interface and BlueControl software
• Maintenance manager and error list
• One universal input and one optional input
• Up to 4 digital inputs
• 2 PID set manually selectable
• Self-Tuning at start-up and setpoint

West Instruments Pro Series Temperature Controllers

Datasheet

Brochure

Manual - Full

Manual - Concise

Manual - Modbus

Accessory Guide
