RS PRO 12 Way Floorbox

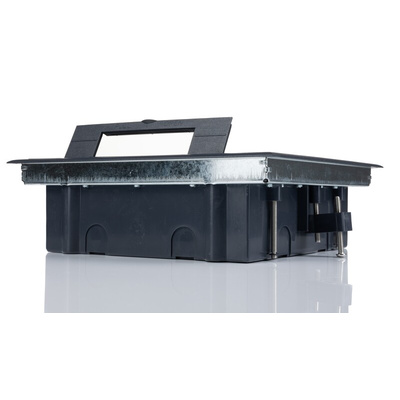

RS PRO Recessed Audio Visual Floor Box

A heavy duty and high quality Audio Visual floor box designed to accept up to 12 x 45mm modules for the creation of a bespoke layout to meet your individual needs.
Featuring space for 12 x 45 x 22.4mm or 6 x 45 x 45mm modules including Audio Visual, Data, Telecoms and power connectors. The AV floor box features 6 x 25mm knockouts underneath the box for quick and easy cable and conduit access and the flexible fixing clamps ensure installation is straightforward and simple
Manufactured from galvanized steel and high impact Polycarbonate the floor box is designed for strength and discretion featuring an intuitive carpet insert to cover the floor box when installed. A clever recessed floor box ideal for office and commercial use.

Features and Benefits

• Galvanised Steel and high impact Polycarbonate AV Floorbox


• Glavanised lid insert


• Floor cut out of 230 x 210 x 75mm


• Carpet recess dimensions 214 x 154 x 8mm


• Suitable modules 6 x 45 x 45mm or 12 x 45 x 22.4mm (or a combination)


• Adjustable height clamps

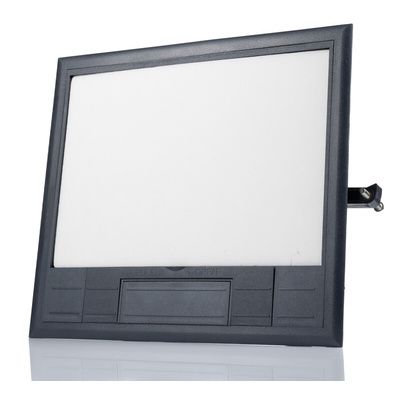

• 8mm deep carpet insert space

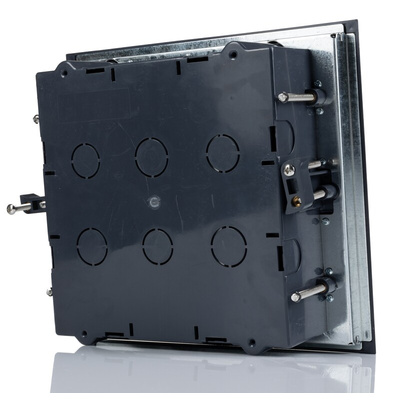

• 6x25mm knockouts


• Weight of 2.11kg
