5131AB, PR Electronics 5100 Series Programmable Signal Conditioner, Current, RTD, Thermocouple, Voltage Input, Current Output,, Преобразователь температуры

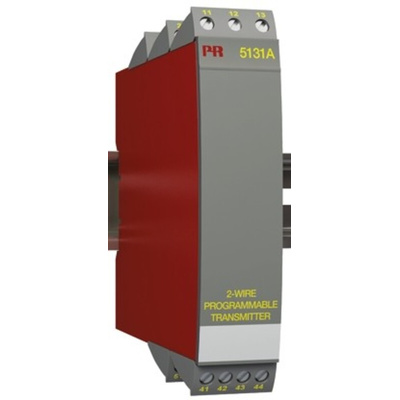

PR Electronics 5131A 2-wire Programmable Transmitter

PR Electronics 5131A series 2-wire programmable transmitter for linearized, electronic temperature measurement with RTD or TC sensors. The signal conditioner features conversion of linear resistance variation to a standard analogue current / voltage signal, for example from solenoids and butterfly valves or linear movements with attached potentiometer.
Th 5131A transmitter is configurable with the software program PReset using a standard PC and the Loop Link communications unit (stock-no. 796-7020).

Features and Benefits

• Input for RTD, TC, mV, linear resistance, mA, and V sample
• 4- or 3-wire connection automatic cable compensation or 2-wire connection with programmable cable compensation
• Current input programmable in range 0-100 mA and voltage inputs in range 0-250 Vdc
• 4-20 mA loop output
• Voltage output range is selectable between 0-10 Vdc
• Independent channel jumper selectable inputs for current/voltage or temperature
• Programming can be performed with or without a power supply
• 3.75 kVac galvanic isolation between the channels
• Configurable sensor error detection including NAMUR NE43
• DIN rail mounting
