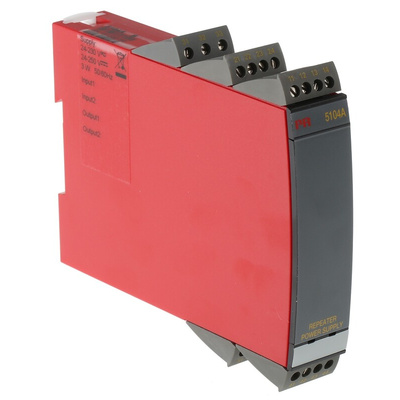

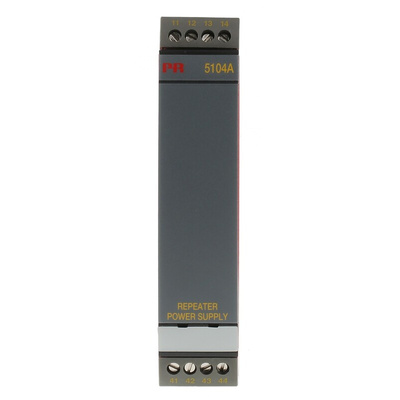

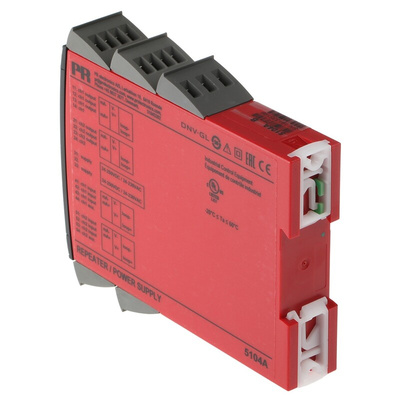

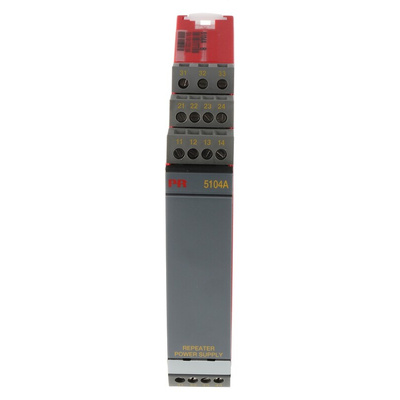

PR Electronics 5104A Repeater/ Power Supply

PR Electronics 5104A repeater is a power supply and signal isolator for 2-wire transmitters. The 5104A signal conditioner is based on microprocessor technology for gain and offset. The analogue signal is transmitted at a response time of less than 25 ms. 20 factory-calibrated measurement ranges in the 5104A can be selected by the internal DIP-switches without the need for recalibration. Mounted vertically or horizontally on a DIN rail. As the devices can be mounted without distance between neighbouring units, up to 84 channels can be mounted per meter.

Features and Benefits

• 1:1 or signal conversion of analog current / voltage signals
• 3.75 kV ac galvanic isolation
• Inputs, outputs and supply are floating and galvanically separated
• Output can be connected either as an active current / voltage transmitter or as a 2-wire transmitter
• Low response time
• Universal supply by AC or DC
• Loop supply > 17.1 V
• DIN Rail mounting (vertically or horizontally)
