AEDB-9140-A13, Broadcom 5V dc Optical Encoder, Энкодер

Optical Encoders

This range of motion control optical encoders, by Avago Technologies, is available in two and three channel output options. These incremental encoders utilize optical technology for motion control. Incremental encoder devices provide position feedback for incremental counts. Where the feedback signal is always referenced to a start or home position, an incremental encoder provides a uniquely defined, relative position. Avago Technologies offer both optical reflective incremental encoders and optical transmissive incremental encoders. These devices are available as encoder modules for user integration or as complete housed or kit incremental encoders. This range of optical encoders provides accurate positioning and velocity sensing for a variety of applications.

Possible applications include:
printers
copiers
scanners
servo and stepper motor feedback systems
robotic arms
wafer-handling machines

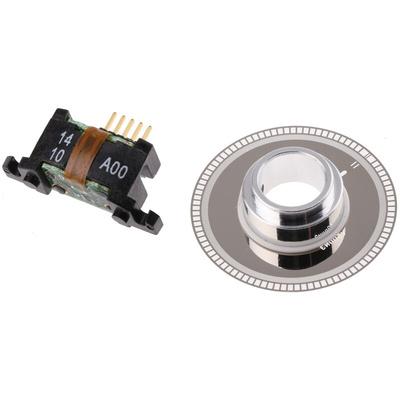

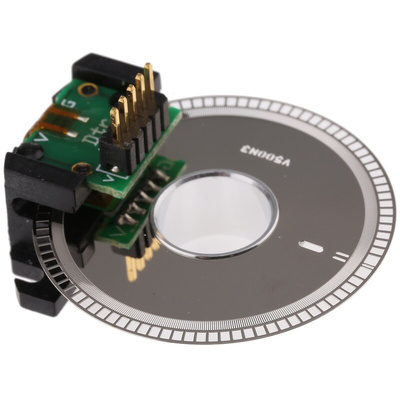

AEDB-9140 Series- 3 Channel Optical Incremental Encoder

• Small Size
• Low Cost
• Easy to Mount
• TTL Compatible
• Resolution from 100 CPR to 500 CPR (Counts Per Revolution)
• Two Channel Quadrature Output with Index Pulse
• Operating Temperature: -10°C to 85°C

Avago Technologies Rotary Encoders

AEDB-9140 Series Data Sheet
