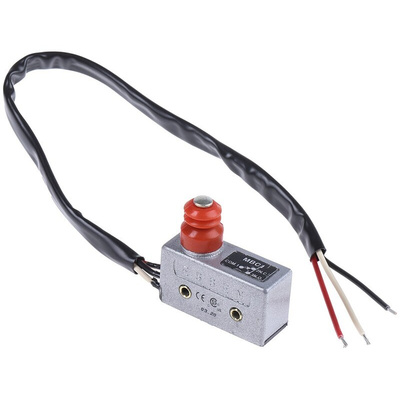

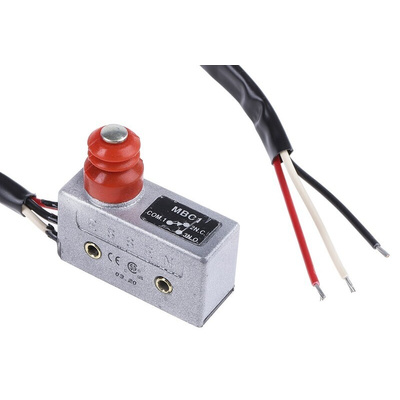

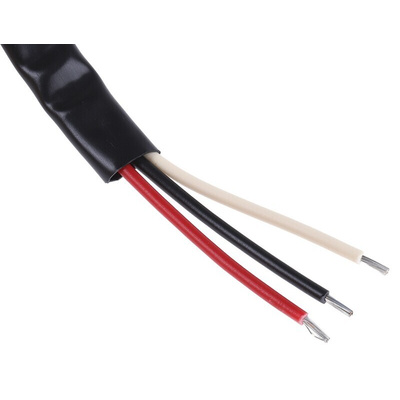

RS PRO Plunger Micro Switch, Pre-wired Terminal, 15 A @ 250 V ac, SPDT, IP54, Микропереключатель

RS PRO SP-NO/NC Plunger Microswitch, 15 A @ 250 V AC

Common in the home as well as industrial premises, microswitches are often used as safety devices. The single-pole changeover on the RS PRO microswitch lets you use it to switch between two electrical circuits. For example, a popular use is opening up circuits when needed to prevent a machine being turned on.

The snap-acting switch is protected by a robust metal casing. Protected by a detachable, insulated cover plate, the M3 screw terminals are located in 3.96 mm wide wiring channels. The beryllium copper trident spring operating mechanism is corrosion-resistant, and the fine silver contacts ensure high conductivity.

IP54-rated for protection against dust and accidental splashes, this unit conforms to IEC 1058-1 as a reliable, safe switch. Frequent uses for this type of microswitch include safety switches on automatic doors or in industrial control circuits.

Features and Benefits

• Microswitch
• Contact configuration SP-NO/NC
• Plunger type actuator
• Single-pole, changeover configuration
• Snap-action means the speed of travel of the contacts does not rely on the speed of actuation
• Robust metal casing is IP54-rated for resistance against dust and splashes
• Fine silver contacts offer excellent conductivity
• Screw terminal
• Contact current rating of 15 A at 250 V AC
• Operating force of 723 gms
• Release force of 170 gf
• Maximum overtravel of 4.6 mm
• Maximum pretravel of 1.5 mm
• Maximum movement differential of 0.08 mm
• Mechanical life of 1,000,000 operations
• Conforms to IEC 1058-1 standard as a safe and effective switch
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
