TMR 2-1210WIN, TRACOPOWER TMR 2WIN DC-DC Converter, 3.3V dc/ 500mA Output, 4.5 → 18 V dc Input, 2W, Through Hole, +90°C Max, Преобразователь

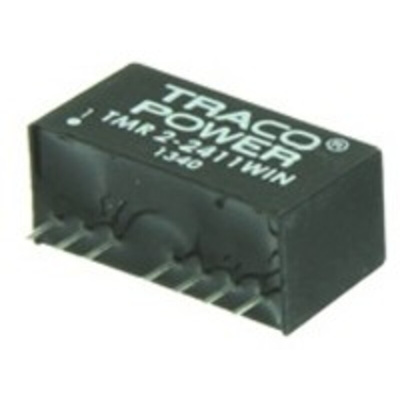

Traco 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - TMR 2WIN Series

The Tracopower TMR-2WIN range of isolated DC/DC converters feature an excellent efficiency, which along with the use of high grade components, allows a compact SIP-8 package. This isolated DC/DC converter is suited for use in temperature ranges of -40°C to +75°C at full load and up to 90°C with 50% power derating. The TMR-2WIN range of DC/DC converters feature a wide 4:1 input voltage range and precisely regulated output voltages. Typical applications of these DC/DC converters are in distributes power architectures in communication and industrial electronics and everywhere where space on the PCB is critical.

Ultra-wide 4:1 input range
Compact SIP-8 package
Temperature range –40 to +90°C
High efficiency of 82%
Excellent load and line regulation
Continuous short-circuit protection
Overload protection
I/O isolation 1500 VDC
Remote On/Off control
3-year product warranty

Standards

UL 60950-1
IEC/EN 60950-1

Approvals

CB test certificate according IEC 60950-1
CSA certificate for CSA/UL 60950-1
