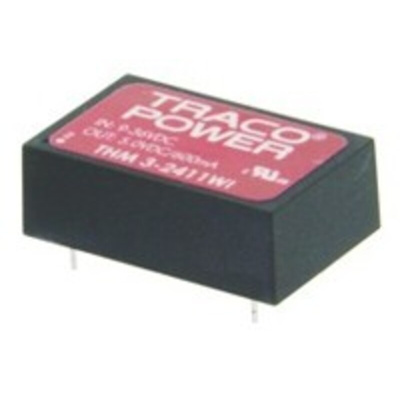

THM 3-2411WI, TRACOPOWER THM 3WI DC-DC Converter, 5V dc/ 600mA Output, 9 → 36 V dc Input, 3W, Through Hole, +94°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 12V Nominal Input Voltage, Isolated - THM 3WI Series - THM 3-2411WI

Power up a safe and efficient energy solution with this DC-DC converter from Traco Power. It has an input voltage range from 9 to 36V DC and an output of 5V DC, so you can use it to step down power to a level your equipment can handle. An efficiency rating of 85% means the unit doesn't waste much energy by producing heat, so you can rely on it to run cool. As the converter's enclosed inside a DIP-24 package, it's widely compatible. To cut the risk of electric shocks and boost durability, the housing's made from insulating plastic.

• Through-hole mounting means it's simple to install
• Isolation voltage of 5kV AC keeps staff and equipment safe
• Power rating of 3W means it's suitable for low-power applications
• Compact dimensions of 31.8 (L) x 10.2mm (D) so it saves space in crowded setups

Applications

• Medical instruments
• Industrial control systems
• Transportation industry

Can I use this DC-DC converter in extreme conditions?

Yes, it has a broad operating temperature range between -40°C and +94°C, so it's suitable for applications in harsh environments.
