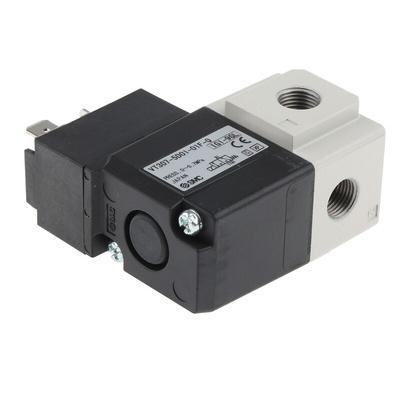

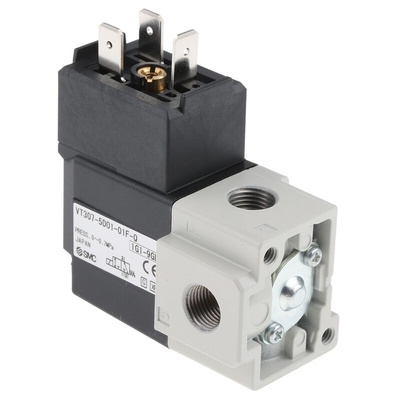

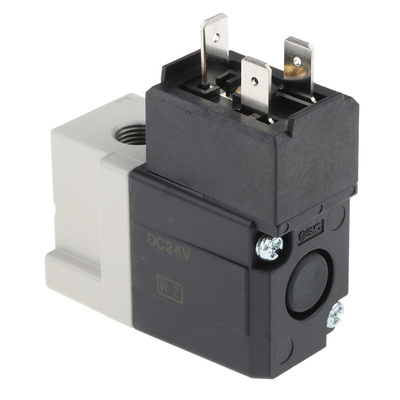

VT307-5DO1-01F-Q, SMC 3/2 Pneumatic Solenoid Valve - Solenoid/Solenoid G 1/8 VT307 Series 24V dc, Клапан

SMC Solenoid Valve

The SMC VT307 series 3/2 ports direct-acting solenoid valve has a 1/8in G port connection thread size. It required supply voltage of 24VDC. This new direct-acting solenoid valve offers a large flow capacity and reduced power consumption as compared to the existing models.

Features and Benefits

Operating temperature ranging between -10°C and 50°C
Operating pressure ranging between 0MPA and 0.7MPa
Body ported
Interchangeable with the existing range
Universal porting type
Available without a DIN 43650 connector
Dust-proof enclosure
Unrestricted mounting orientation
Non-locking push type manual override
Easily converted from N/C to N/O by an inverting function plate

Applications

Blow-of valves
Pressure release valves
single acting cylinder drives
Divider valves and double acting cylinder drives
Selector valve
Valve for vacuum
Divider valve

Certifications

IP65 protection
