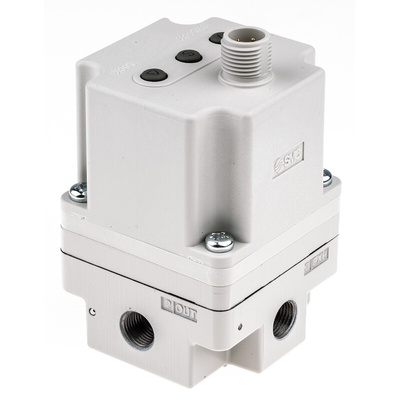

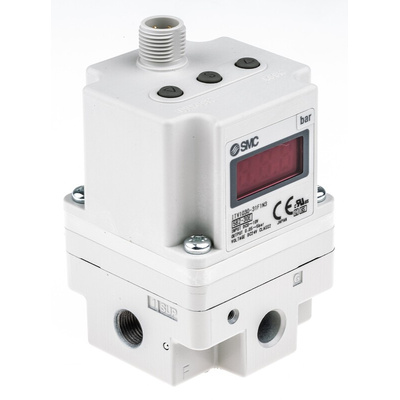

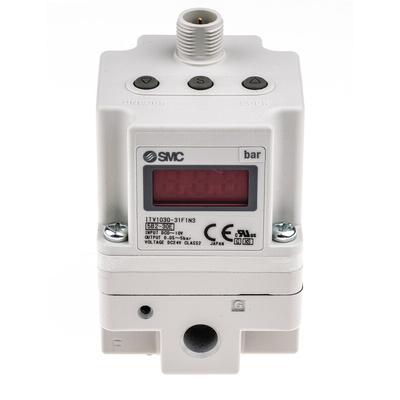

ITV1030-31F1N3, SMC G 1/8 Pneumatic Regulator - 0.005MPa to 0.5MPa, 1/8in, 1MPa max. input, Регулятор

ITV series

Electro-pneumatic pressure regulator range from SMC.
ITV series regulators allow proportional control of the regulators output pressure with an electrical input signal. Increasing the input signal will increase the pilot pressure operating a diaphragm controlling air between the supply and output pressure ports. The pressure at the output port will continue to rise until the feedback from the pressure sensor shows the output pressure to be proportional to the input signal.

Near zero air consumption at set pressure
Temperature range +5°C to +50°C
Analogue output 1 to 5 Vdc
LED three digit pressure display
IP65 rated enclosure
Energy consumption of 4w or less
Zero and span can be set without supply pressure present
Without cable

Note

Cable available under RS stock numbers 700-7522 for the 'S' type and 700-7531 for the 'L' type, available via web only

Datasheet

Energy Efficiency Brochure
