7000-41121-0000000, Murrelektronik Limited Adapter, Разъем

Murrelektronik Cable Connector

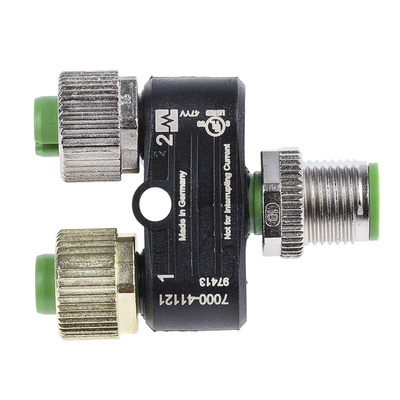

The Murrelektronik Limited 7000 series 5-contact M12 male/female T-coupler cable connector has a socket in-line connection. This cable mount connector has a voltage rating of 60VAC/DC and a current rating of up to 4A per contact. The T couplers allow splitting a line in half for the requirements of a particular process or application. This connector has plug-in mating with a threaded locking mechanism for an easy and secure connection. Its housing is constructed from impact-resistant plastic. This connector features IDC termination has good resistance against chemicals, oils, lubricants, coolants and other aggressive media.
They are available as an M12 male connector to two M12 female connectors and a single M12 male connector to double M8 female connector.
HxWxD 45mm x 36mm x 15mm (M12-M12)
HxWxD 42mm x33mm x15mm (M12-M8)
Murrelektronik sensor-Actuator cable assemblies and connectors
A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, Fieldbus connector cable assemblies, couplers and tooling from Murrelektronik.
The Murrelektronik Limited 7000 series 5-contact M12 male bulkhead cable connector has a plug in-line connection. This cable mount field -wireable(IDC) connector has a voltage rating of 32VAC/DC and a current rating of up to 4A per contact.

Features and Benefits

Straight body orientation
Screw termination
Easy mating and unmating
Operating temperature ranging between -40°C and 80°C
Shielded

Applications

Machine tools
Manufacturing
Metal cutting
Production lines

Certifications

IP65 rated
IP67 rated

7000-41121-0000000
