171692-0104, Molex, Mega-Fit Male Connector Housing, 5.7mm Pitch, 4 Way, 2 Row, Корпус разъема

Mega-Fit UL 94 V-0 Receptacle Housings - 171692 Series

These Mega-Fit 5.70 mm pitch Receptacle Housings from Molex have a positive locking feature which gives an audible click when fully mated to the header. The terminals are fully isolated in the Mega-Fit Receptacle Housing for protection during handling and mating. The body material used for these Mega-Fit Receptacle Housings has a flammability Rating of UL 94 V-0.
For the Mega-Fit Crimp Terminal Contact see stock number 797-5920 .
For mating Mega-Fit Headers see stock number 797-5908 typical.

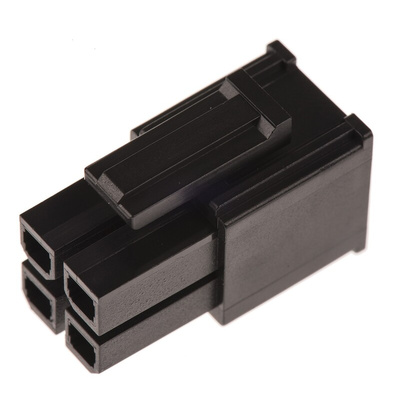

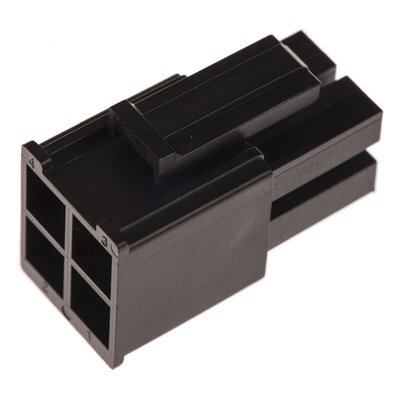

Molex Male Connector Housing, 5.7mm Pitch, 4 Way - Mega-Fit Series - 171692-0104

Establish reliable PCB-to-PCB or PCB-to-cable connections with this male connector housing from Molex. It's a 2-row component that has a tight pitch and high-current density system at 23A per circuit, so it's suitable for use with demanding applications. A positive locking feature gives an audible click to let you know when the part is securely mated to the header, while fully isolated terminals protect you against electric shocks.

• PBT housing material resists chemical and heat damage for durability
• Fire safety tested and approved so the part won't ignite or spread fires
• Wide operating temperature range from -40°C to +120°C for use in extreme conditions and with heavy-duty applications

Applications

• Control panels
• Automated process applications
• Marine-based equipment
• Automotive and aerospace industries

How many connections can I make with this crimp housing?

This is a 4-way crimp housing, so you can use it to make 4 connections.

How much does this connector housing weigh?

This connector housing weighs only 1.91g so it won't add unnecessary strain to your PCB.

Molex Mega-Fit 5.7 mm Pitch Series

The Mega-Fit Power Connector range from Molex is a high current density system having a tight pitch and row spacing with applications in virtually every industry at 23 A per circuit.
