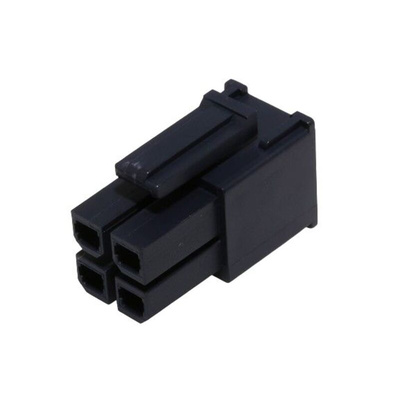

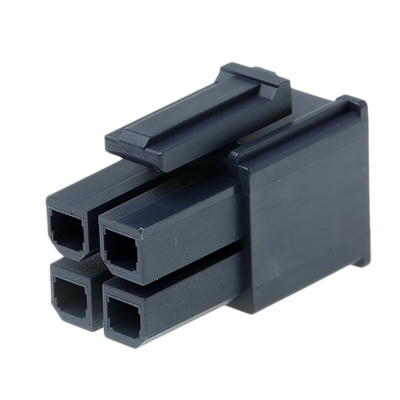

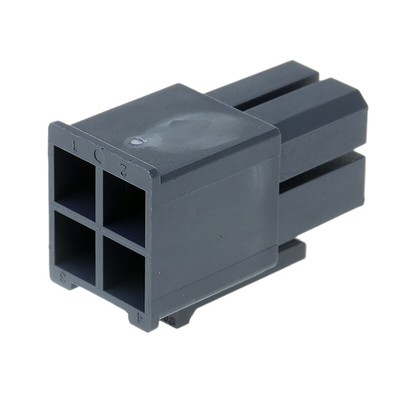

170001-0104, Molex, Mega-Fit Female Connector Housing, 5.7mm Pitch, 4 Way, 2 Row, Корпус разъема

Mega-Fit Glow-Wire Compliant Receptacle Housings - 170001 Series

These Mega-Fit 5.70 mm pitch Glow-Wire Compliant Receptacle Housings from Molex have a positive locking feature which gives an audible click when fully mated to the header. The terminals are fully isolated in the Mega-Fit Glow-Wire Compliant Receptacle Housing for protection during handling and mating.
For the Mega-Fit Crimp Terminal Contact see stock number 797-5920 .
For mating Mega-Fit Glow-Wire Compliant Headers see stock number 797-5908 typical.

Molex Mega-Fit Series Connector Housing, Nylon, Straight - 170001-0104

This connector housing is a high quality product designed for use in automation, electronics, electrical, and mechanical industries. It features a straight design with a nylon housing material, making it durable and reliable for various applications. The Mega Fit series ensures compatibility and efficiency for wire to board and wire to wire connections, providing a secure and stable connection every time.

Features & Benefits

• Male connector housing designed for 4 contacts
• Cable mount for easy installation and flexibility
• Dual row design for enhanced connectivity
• Glow wire compliant for safety and reliability
• Nylon material for durability and longevity

Applications

• Ideal for power connectors in automation systems
• Perfect for wire-to-board and wire-to-wire connections in electronics
• Suitable for male connectors in electrical applications

Can it be used with wire-to-board connectors?

Yes, this connector housing is designed to be compatible with wire-to-board connectors for seamless integration.

Will it work with power connectors in automation systems?

Yes, this product is specifically designed for use with power connectors in automation systems.

Is it suitable for wire-to-wire connections in electronics?

Yes, this connector housing is the perfect solution for wire-to-wire connections in various electronic devices.

Can it be mounted on cables easily?

Yes, the cable mount design of this housing allows for easy installation on cables for quick and efficient connections.

Molex Mega-Fit 5.7 mm Pitch Series

The Mega-Fit Power Connector range from Molex is a high current density system having a tight pitch and row spacing with applications in virtually every industry at 23 A per circuit.

Mega-Fit Receptacle Housing 4 Circuit Glow-Wire Compatible - Datasheet

Mega-Fit Brochure

Mega-Fit Receptacle Housing 2-12 Circuit Glow-Wire Compatible - Drawing

Datasheet

Line Drawing

Application Specification - 170001-0104
