172063-0312, Molex Mega-Fit Series Female Crimp Terminal, 12AWG Max, Контакты

Mega-Fit Terminal Contact

The Molex Mega-Fit Terminal contact provides six independent contact points in a split box design. The design of the Mega-Fit Terminal also allows "hot plugging" for up to 30 cycles at 48V/23A by virtue of its four sacrificial contact points which help protect the two main ones.
Terminal-to-wire retention is improved due to the extended crimping barrel of the Mega-Fit Terminal contact design.
For Mega-Fit Crimp Hand tool see stock number 798-0821 .

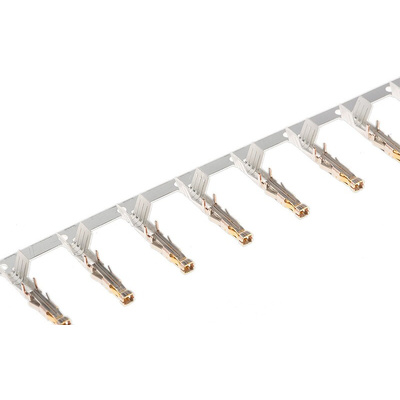

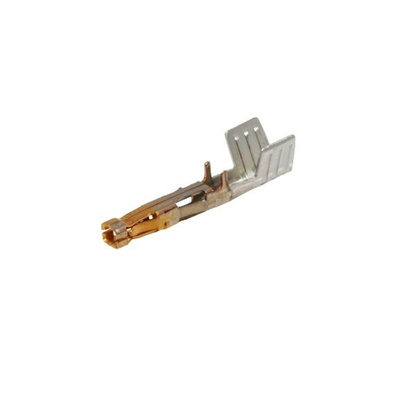

Molex Female Crimp Terminal, 12AWG, 23A Current Rating - Mega-Fit Series - 172063-0312

Use this female crimp terminal from Molex to reliably secure wires to your PCBs. It has 6 independent contacts and a split-box design that allows hot-plugging for up to 30 cycles at 48V and 23A. This means you don't have to restart essential systems like servers to add components. The gold-plated copper-alloy contacts are highly conductive and there are extended crimping barrels to keep your wires securely attached. As this terminal has a very broad operating temperature range of -55°C to +105°C, it's suitable for use in demanding conditions.

• Crimp termination method gives a secure and airtight connection
• Accommodates commonly used 12AWG wires
• Nickel-plated termination is resistant to corrosion for a longer lifespan

Applications

• Medical equipment
• Domestic appliances
• Telecommunications systems
• Automotive applications
• Aerospace industry

What's meant by contact gender?

Crimp contacts, like this one from Molex, are either male or female. A female connector like this one is a socket and a male pin or plug connector fits into it.

Why are crimp terminals important?

Crimp terminals create circuits, so are essential for establishing the flow of current in electronic applications.

Molex Mega-Fit 5.7 mm Pitch Series

The Mega-Fit Power Connector range from Molex is a high current density system having a tight pitch and row spacing with applications in virtually every industry at 23 A per circuit.

Mega-Fit Brochure

Mega-Fit Female Crimp Terminal, 15 micro inch Gold (Au) Plating - Drawing

Datasheet

7975920_Application Sheet_en

7975920_Product Specification Sheet_en
