43030-0004, Molex Micro-Fit 3.0 Series Female Crimp Terminal, 30AWG Min, 26AWG Max, Контакты

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

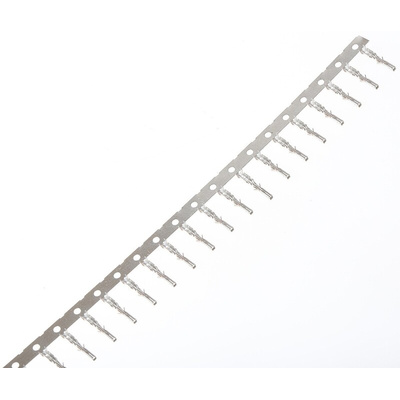

Molex Micro-Fit 3.0 Female Crimp Terminal, 30 to 26AWG - 43030 Series - 43030-0004

Make strong, secure PCB (printed circuit board) electrical connections with this crimp terminal from Molex. It's optimised for use with the Micro-Fit 3.0 and Micro-Fit BMI connector housings and is suitable for use with wires sized 30 to 26AWG (American Wire Gauge). Locking tangs secure the wires into position, so vibrations and shocks won't dislodge the join. The crimp connection method creates a mechanically strong, airtight bond that prevents moisture and particulates in the air from getting in and causing corrosion or electrical failure.

• Maximum current capacity per contact of 5A (amperes) offers versatile capacity
• Low halogen status means it limits risk of toxic fumes in case of fire
• Multiple points of contact enable reliable current-carrying capacity
• Phosphor-bronze contacts ensure longevity, while tin plating enhances conductivity for better current transmission

Applications

• Security systems
• Automotive industry
• Telecommunications

Does this connector function properly in below-freezing temperatures?

Yes, this connector is designed to operate effectively in temperatures as low as -55°C. It will also function safely at temperatures as high as +105°C, so it can be used in harsh industrial conditions.
