02-09-2118, Molex STANDARD .093" Series Male Crimp Terminal, 22AWG Min, 18AWG Max, Контакты

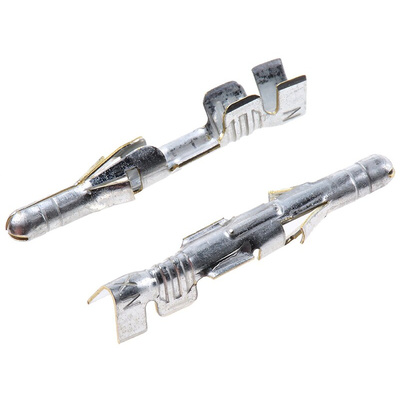

Molex 2.36mm Diameter Pin and Receptacle Crimp Terminals

2.36mm diameter pin and receptacle crimp terminals with an industry standard size which allows them to be used in the 5.03mm pitch Standard .093" and 6.71mm pitch 3191 series connector housings. These crimp terminals can be used in either plug or receptacle housings for design flexibility and are available with a tin or gold plating and a range of wire sizes.

Application:

• Consumer Electronics
• Communications
• Networking
• Portable Devices

Approvals

UL (E29179); CSA (LR 19980); EAMCL

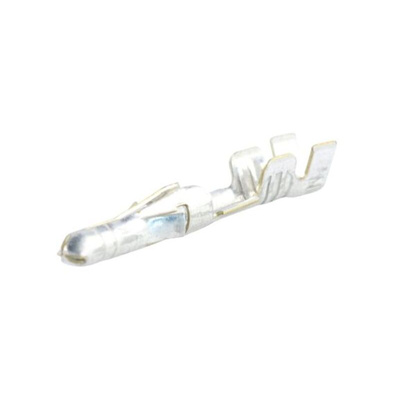

Molex Crimp Terminal, Brass Construction, 2.36mm Diameter - STANDARD .093" 1380 Series - 02-09-2116

Clamp a wire connection to your board using this male crimp terminal from Molex. It accommodates cables ranging in size from 22 to 18AWG for flexibility when fixing in your wiring. A wide operating temperature range from -40°C to +105°C means it stands up to harsh environments. To really seal the deal, enclose the terminal in a connector housing from the STANDARD .093" series (such as 236-3123) to shield it from contaminants.

Features & Benefits

• Crimp or compression termination method for straightforward assembly
• Tin-plated contact resists corrosion
• 100 in a pack to see you through multiple connections
• 25 mating cycles for durable performance
• Compact diameter of 2.36mm to handle small conductors

Applications

• Electrical engineering
• Research and development labs
• Computer networking
• Consumer units

What material is the terminal's contact made from?

It's made from highly conductive brass to ensure stable electrical transmission.

Molex 2.36mm Diameter Standard .093" Pin and Socket Range

Datasheet

Line Drawing - 02 - 09 - 2118
