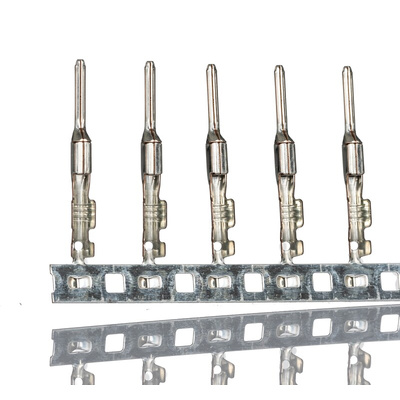

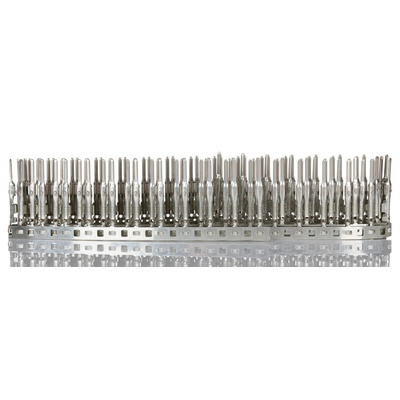

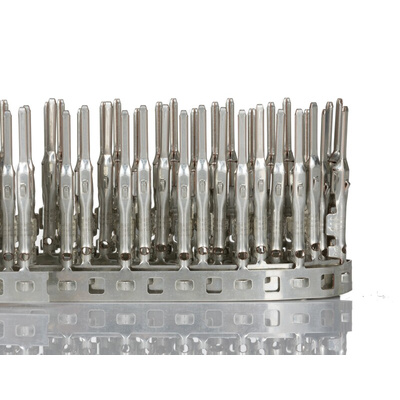

33000-1002, Molex MX150 Series Male Crimp Terminal, 22AWG Min, 18AWG Max, Контакты

MX150™ Male Crimp Terminals - 33000 Series

Male crimp terminals for the MX150™ connector system. These male crimp terminals are matte sealed, have a low insertion force of 3.0 N (average) and meet USCAR performance testing. The electrical ratings for these male crimp terminals is 250 V, 22 A. These male crimp terminals mate with series 33012 and 33001 female terminals, stock numbers 720-5716 and 720-5713 typically.
For use with series 33472 female connectors, stock number 720-5726 typically.
For use with series 93287 female SRC connectors, stock number 775-4436 .
For use with series 85084 female SRC Hybrid connectors, stock number 775-4445 .

Note

For a range of MX 150 Tooling see stock number 778-6717 typical.

Molex Crimp Terminal, 14V DC Maximum Voltage, Low Halogen - MX150 33000 Series - 33000-1002

Is your electronic circuit board jam-packed? Free up space with this crimp terminal from Molex. Its compact size helps you to solve space challenges in under-chassis locations, making it ideal for use in the automotive industry. The housing securely retains wires while also offering strain relief, so you can count on its holding power in harsh off-road environments. Thanks to the crimp termination method, you can rely on this terminal to make a firm seal around conductors that's protected against airborne contaminants.

Features & Benefits

• Up to 25 mating cycles for durability
• Tin plating gives low transfer resistance for maximum electrical flow
• Light weight of 0.37g puts minimal strain on a circuit board

Applications

• Construction equipment
• Electric vehicles
• Haulage industry

What voltage can this crimp terminal handle?

The connector handles voltages up to 250V and currents of up to 22A per contact, so it's a practical choice for mid-power applications.

Molex MX150™ Sealed Connection Systems

MX150 Male Power Terminal Contact - Drawing

Datasheet

Application Specification - 33000-1002
