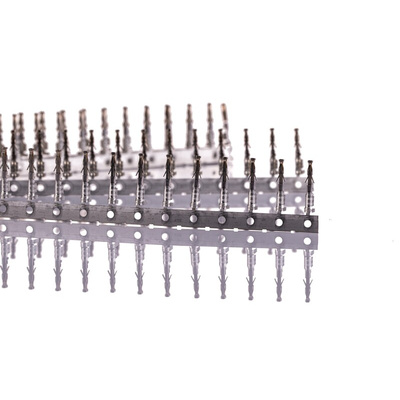

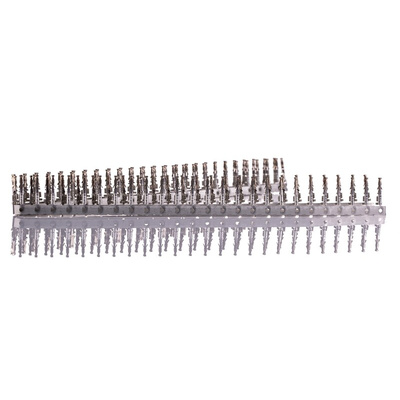

46235-0001, Molex Micro-Fit RMF Series Female Crimp Terminal, 24AWG Min, 20AWG Max, Контакты

Molex Micro-Fit 3.0 mm Crimp Contacts

Pin and receptacle crimp contacts for use in the Micro-Fit 3.0 mm plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. The 46235 series crimp contacts are RMF (Reduced Mating Force) contacts which have a reduced engagement and disengagement force for ease of use. These Micro-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility

Features and Benefits

• Multiple points of contact for reliable electrical connection
• Locking tangs for secure connection in housing
• Reduce Mating Force versions for ease of use
• Range of platings and wire sizes for design flexibility

Molex Crimp Terminal, 5A Maximum Current Per Contact, 0.381μm Contact Thickness - Micro-Fit RMF Series - 46235-0001

Transmit power signals to your PCB with this Molex crimp terminal. It's designed for Micro-Fit 3.0 as well as Micro-Fit BMI connector housings and has multiple connection points to fit them, making it a versatile solution. Thanks to copper-zinc-tin contacts, you get a reliable connection and stable signal transmission. The terminal has a maximum current rating of 5A per contact, so it's a practical choice for low-power applications.

Features & Benefits

• Gold contact plating enhances corrosion resistance for long-term performance
• Wide operating temperature range of -55°C to +105°C for use in extreme conditions
• Accommodates a wire size range of 24 to 20AWG for versatility

Applications

• Computers
• Mobile phones
• Robotics systems

How do I terminate wires to this crimp terminal?

To terminate wires to this unit, simply place them in their mating section and secure them using a hand crimping tool.

Molex Micro-Fit 3.0 Series

Micro-Fit (3.0) Series 46235 Crimp Female Terminal Contact Gold Low Mate Force - Drawing

Datasheet

Product Specification Sheet - Micro-Fit Low Mate Force Series
