45750-3111, Molex Mini-Fit Plus Series Female Crimp Terminal, 16AWG Min, 16AWG Max, Контакты

Molex Mini-Fit Plus HCS Crimp Contacts

The Mini-Fit Plus HCS is designed for high current applications up to 13A (dependant upon wire size and number of HCS contacts).
These Molex HCS terminals can be used with all existing Mini-Fit plugs and receptacles.

Male terminals 46012 and 44478 Series

Use with 5559 Series plug housings typical stock number 319-1395

Female terminals 45750 and 44476 Series

Use with 5557 Series receptacle housings typical stock number 319-1480

Tooling

For extraction tool see stock number 215-5900

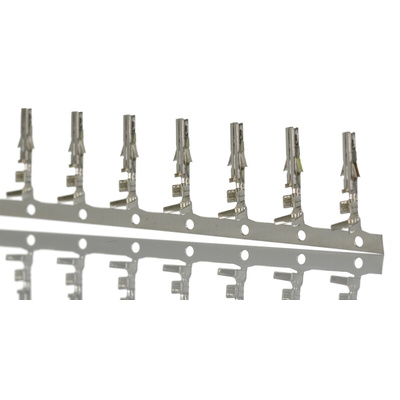

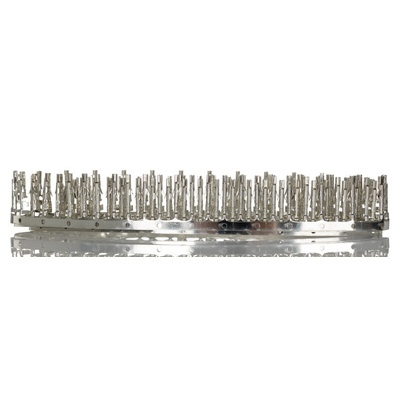

Molex Crimp Terminal, 13A Current Rating, Copper Alloy Material - Mini-Fit Plus Series - 45750-3111

Hook up high-current circuits with this crimp terminal from Molex. It has foldable metal arms, meaning you can quickly terminate wires using compression. The terminal has a sturdy 13A current rating when mated with Mini-Fit connectors such as the 10-way option (670-4521). As locking tangs create a secure attachment, it couldn't be easier to make dependable wire-to-board and wire-to-wire connections. The mating section has a dimpled design to maximise contact and achieve strong connections.

Features & Benefits

• Copper alloy material with tin plating ensures high conductivity
• Works without a glitch in demanding temperatures from -55°C to +105°C

Applications

• Medical devices
• Industrial automation
• Automotive industry
• Telecommunications networks

Can this crimp terminal be extracted from a connector after insertion?

Yes. Just remember to use an extraction tool (215-5900) so you don't damage your components. As this crimp terminal is good for at least 100 mating cycles, you can reinsert it later.

Note

For crimp tool see stock number 207-6781

Molex Mini-Fit Plus HCS

Mini-Fit Plus HCS Female Crimp Terminal - Drawing

Datasheet

Molex Mini-Fit Connector Datasheet
