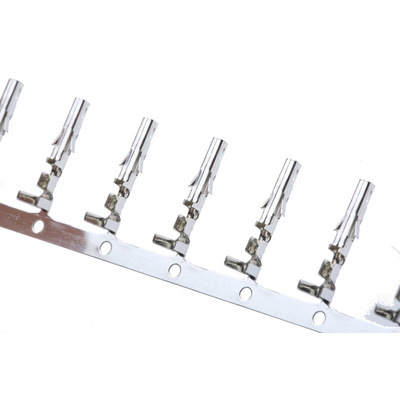

45750-1111, Molex Mini-Fit Plus Series Female Crimp Terminal, 20AWG Min, 18AWG Max, Контакты

Molex Mini-Fit Plus HCS Crimp Contacts

The Mini-Fit Plus HCS is designed for high current applications up to 13A (dependant upon wire size and number of HCS contacts).
These Molex HCS terminals can be used with all existing Mini-Fit plugs and receptacles.

Male terminals 46012 and 44478 Series

Use with 5559 Series plug housings typical stock number 319-1395

Female terminals 45750 and 44476 Series

Use with 5557 Series receptacle housings typical stock number 319-1480

Tooling

For extraction tool see stock number 215-5900

Molex Crimp Terminal, 13A Maximum Current Per Contact, 0.15g Weight - Mini-Fit Plus Series - 45750-1112

For a durable wire-to-board electrical connection, choose this crimp terminal from Molex. Its maximum current per contact of 13A makes it a practical choice for industrial power-management applications. The terminal needs minimal maintenance, as crimp technology ensures your wires are reliably joined and can't wriggle loose. This type of connection also achieves a gas-tight seal, so you can rest assured your conductors are protected against moisture and airborne contaminants.

Features & Benefits

• Light weight of 0.15g puts minimal strain on a PCB
• Copper alloy construction for maximum conductivity
• Tin plating resists corrosion to deliver a long service life, even in humid settings

Applications

• Robotics systems
• Food and beverage manufacturing
• Aerospace technology

Can I reposition this crimp terminal?

Yes, you can mate this connector up to 30 times, so it's suitable for use in systems that need to be periodically adjusted.
