43645-0308, Molex, Micro-Fit 3.0 Female Connector Housing, 3mm Pitch, 3 Way, 1 Row, Корпус разъема

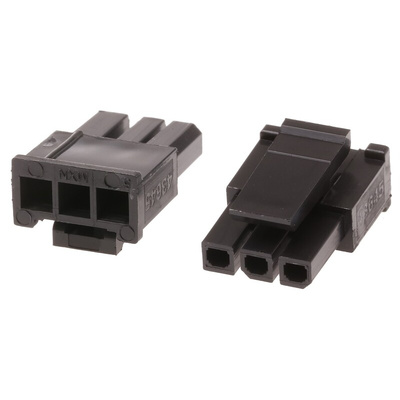

Molex Micro-Fit Connector Housings – Series 43645 & 43640

The 43645 and 43640 series from Molex feature 3.0 mm pitch connector housings, they form part of the compact Micro-Fit connector system. They are typically used for wire to wire or wire to board connections and are ideal for use in a number of applications including Automotive, Electronics, Medical, Communications and Telecommunications.

Features and Benefits

• 3.0 mm pitch
• Housings are black in colour
• Positive locking for a secure connection
• Polarisation to ensure accurate mating
• Panel mounting plugs fitted with ears, enabling them to be used in cable mounting applications
• Single Row
• UL 94V-0 flammability rating

Note

Receptacle accepts female contacts and plug accepts male contacts.
Manufactures Part Numbers 43645-xx08 are Glow Wire Capable.

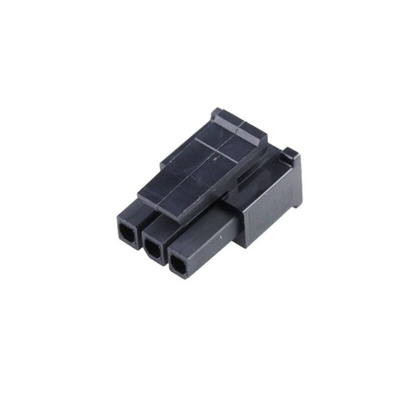

Molex Connector Housing, Straight Body Orientation, -40°C to +105°C Operating Temperature - 43645 Series - 43645-0308

Finish off your PCB circuit with this protective connector housing from Molex. It has a straight-bodied, single-row design, containing three contacts to fasten and hold crimp terminals securely in place. A 3mm pitch makes it a compact choice for areas where space is tight. Connections stay true throughout mechanical vibrations, thanks to a positive locking mechanism. This durable housing is suitable for use in demanding industrial settings as it's made from wear-resistant nylon.

Features & Benefits

• Polarised to minimise errors and make circuit building straightforward
• Flame-retardant construction and low-halogen materials to boost workplace fire safety
• Suitable to use with wire-to-wire or wire-to-board connections for versatility

Applications

• Telecommunication centres
• Medical research and development
• Electronics manufacturing

What size is this unit?

The connector housing is part of Molex's Micro-Fit 3.0 system, so is designed for miniature setups. Its dimensions are 9.85 (L) x 5.3 (W) x 14mm (D).

Molex Micro-Fit 3.0 Series

Micro-Fit (3.0) Single Row Receptacle Housings Glow Wire Capable - Drawing

Datasheet

Line Drawing

Micro-Fit+ Connector Datasheet
