43025-0608, Molex, Micro-Fit 3.0 Female Connector Housing, 3mm Pitch, 6 Way, 2 Row, Корпус разъема

Molex Micro-Fit Connector Housings – Series 43025 & 43020

The 4305 and 43020 series from Molex features 3.0 mm pitch connector housings, they form part of the unique, compact Micro- Fit connector system. A typical application for a connector housing is to provide a receptacle for connectors when they are mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connector and connection it is housing.

Features and Benefits

• Housings are black in colour
• Positive locking for a secure connection
• Fully polarised which prevents mismating and misalignment
• Some products within the 43020 series feature mounting ears which enable them to be used in panel mount applications
• Dual Row
• Low Halogen
• Wire to wire and wire to board

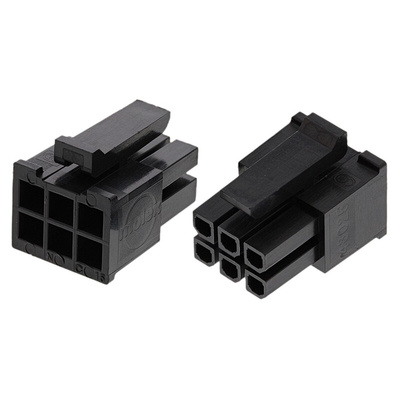

Molex Micro-Fit 3.0 Female Connector Housing, 2 Rows, 6 Contacts - 43025 Series - 43025-0608

This female connector housing from Molex is specifically designed to assist with blind mating. It accommodates marginal misalignment and is well-suited to hard-to-reach applications, such as drawers or fan assembly trays, where connectors need to be mated and unmated without being seen. Thanks to its easy-to-use connection system, operator fatigue is reduced for improved productivity. This housing is compatible with the Molex range of Micro-Fit connectors and is suitable for board-to-board, board-to-wire and wire-to-wire applications.

• Wide operating temperature range of -40°C to +105°C for use in extremely hot and cold working conditions
• Contains low halogen levels for reduced emission of toxic fumes and smoke in the event of a fire
• Positive locking system, which helps to make a secure connection for better reliability
• Flame-resistant and protected against heat from electrically energised parts for improved safety

Applications

• Printers and scanners
• Washing machines and freezers
• Routers and switches

What material is this housing made from?

This Molex connector housing is made from durable nylon, which has enhanced resistance to abrasion and wear. As a result, the unit is long-lasting and suitable for use in harsh industrial applications.

Molex Micro-Fit 3.0 Series
