50-37-5043, Molex, Mini-SPOX Female Connector Housing, 2.5mm Pitch, 4 Way, 1 Row, Корпус разъема

Molex 5264 Series, SPOX Connector Housings

The 5264 SPOX Series from Molex are a range of connector housings with a 2.5mm pitch. They have been designed for wire to board connections and have a spring box shape terminal hence the name spox. This series of crimp housings mate with the 5267 series vertical shrouded PCB headers and the 5268 series right angled shrouded PCB header.

• 2.5mm pitch
• 2 to 12 positions
• High mechanical reliability
• Single row housing
• Natural colour
• Box style terminal

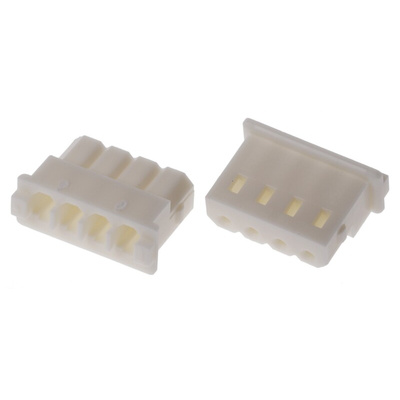

Molex SPOX Female Crimp Connector Housing, 1 Row, 4 Contacts - 5264 Series - 50-37-5043

Use this female crimp connector housing from Molex to protect board-to-wire electrical connections. It's suitable for use with industrial and commercial PCBs (printed circuit boards) in applications varying from gym equipment to car audio systems. The housing is made from nylon for superior resistance to abrasion and wear. As it's plastic, there's no chance of the unit rusting, even when used in moist or humid environments. Its compact size makes it well-suited to high-density PCBs where efficient circuit packing is essential.

• Wide operating temperature range of -40°C to +105°C for safe use in challenging environments
• Self-extinguishing for improved safety as it won't contribute towards an electrical fire
• Compact dimensions of 12.4 (L) x 3.9mm (W)
• Low-halogen so will emit a minimal amount of harmful toxic gases in the event of a fire

Applications

• Laboratory and medical equipment
• Vending machines
• Security systems
• Data and communication networks

Is this connector housing polarised?

Yes, this user-friendly connector housing from Molex is polarised. This means it helps to prevent any misalignment between a PCB's sockets and plugs, so you can achieve more reliable power connections.

2.5mm Wire to Board or Wire - Molex

SPOX Crimp Receptacle Housing 2.5mm Friction Lock - Drawing

Datasheet

Line Drawing

Product Specification Sheet - Mini-SPOX 2.5 Wire to Board Connector System
