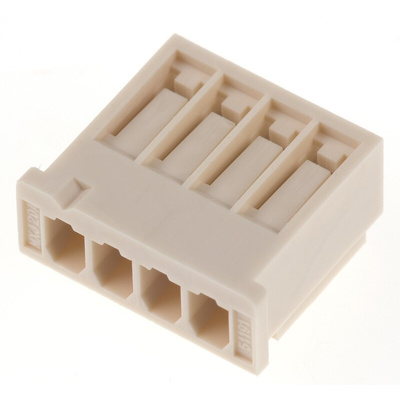

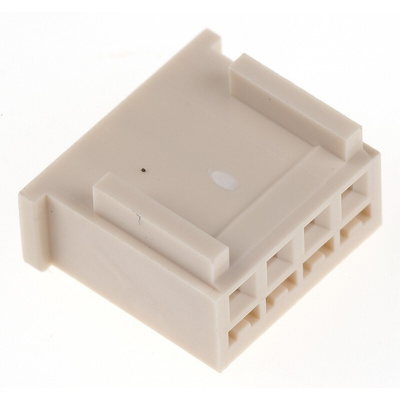

51191-0400, Molex, Mini-Latch Female Connector Housing, 2.5mm Pitch, 4 Way, 1 Row, Корпус разъема

Molex Connector Housing, Nylon Material, 4 Contacts - 51191 Series - 51191-0400

Efficiently connect components to your PCB board using this sturdy 4-way female connector housing from Molex. Its casing is made from nylon, meaning it’s tough, chemical resistant and heat resistant. This makes it suitable for use in harsh and contaminated environments. Thanks to a precise mating pitch of 2.50mm, you can be sure that the contacts are safely isolated. This unit can be used for wire-to-board and wire-to-wire connections, making it a versatile choice.

Features & Benefits

• Wide operating temperature between -40°C and +105°C, so it's ideal for use in demanding conditions
• Dimensions of 12.5 (L) x 6.6mm (W) for where space is limited

Applications

• Personal computers
• Data communication hardware
• Medical equipment

Can I stack multiple units?

No, this unit doesn't permit stacking. It should be used as a single unit for maximum results.

Which crimp terminal is this unit compatible with?

You can use this unit with crimp terminals from the Molex 50802 series.

2.5mm Wire to Board or Wire - Molex

2.50 mm Pitch Wire-to-Wire and Wire-to-Board Receptacle Housing - Drawing

Datasheet

Line Drawing

Application Sheet - Mini-Latch 2.50Mm

Product Specification Sheet - 2.50Mm Pitch Mini-Latch Crimp Terminal
