3842524476, Bosch Rexroth M5, M8 T-Connector Connecting Component, Strut Profile 30 mm, Groove Size 8mm

T-Connectors

For connecting 30x30, 40x40, 45x45 and 50x50 strut profiles at 90°
No profile end finishing preparation
30x30 profile needs core hole thread to accept the M8 x 30mm, fastener provided
For the 40x40, 45x45 and 50x50 size a self-tapping fastener is provided

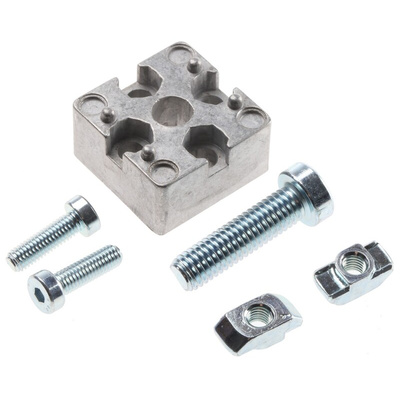

All fasteners are included
Material: 30 & 40 Die-cast Aluminium; 45 & 50 Die-cast Zinc

Bosch Rexroth Connecting Component, T-Connector Type, Aluminium Material - MGE Series - 3842524476

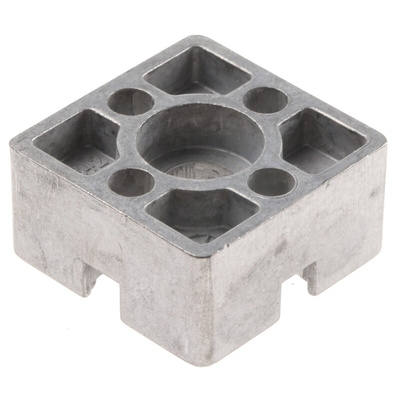

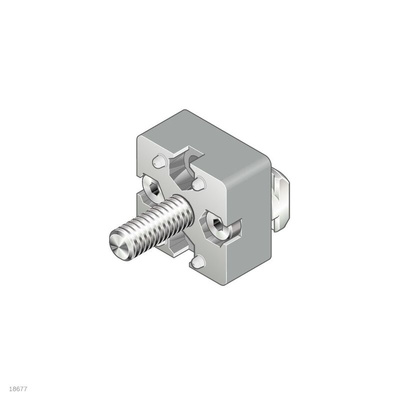

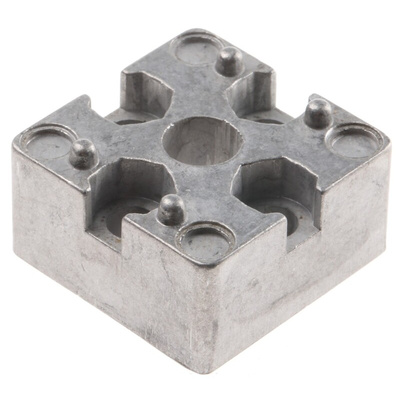

When you use this T-connector from Bosch Rexroth, you won’t get in a tangle when creating a 90° angle on your structure. The nifty metal bracket is die-cast for a precise fit between two 30mm square struts. A central screw grips a horizontal strut while T-head bolts get into the groove of your upright profile, giving you a simple but strong join. As it handles maximum forces of 4000N and 80Nm, this connector holds firm when under pressure.

Features & Benefits

• Can be positioned anywhere along the horizontal groove for flexibility
• Conductive aluminium material for ESD-safe applications

Applications

• Building industry
• Hobbyist workshops
• Catering industry

Do I need any additional fasteners to use this connecting component?

No, the unit comes with all the bolts and screws you need. These fasteners are made from strong steel to support your structure.
