3842520802, Bosch Rexroth M6 T-Connector Connecting Component, Strut Profile 45 mm, Groove Size 10mm

T-Connectors

For connecting 30x30, 40x40, 45x45 and 50x50 strut profiles at 90°
No profile end finishing preparation
30x30 profile needs core hole thread to accept the M8 x 30mm, fastener provided
For the 40x40, 45x45 and 50x50 size a self-tapping fastener is provided
All fasteners are included
Material: 30 & 40 Die-cast Aluminium; 45 & 50 Die-cast Zinc

Bosch Rexroth Connecting Component, T-Connector Type, Die-Cast Zinc Material - MGE Series - 3842520802

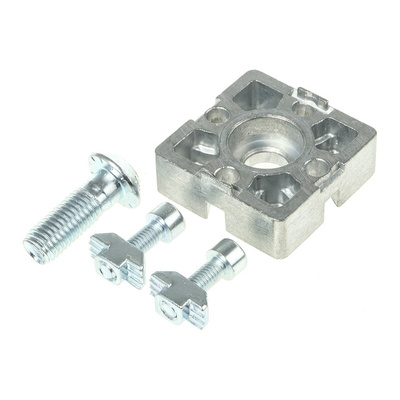

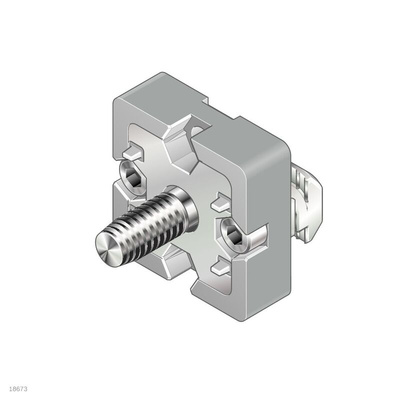

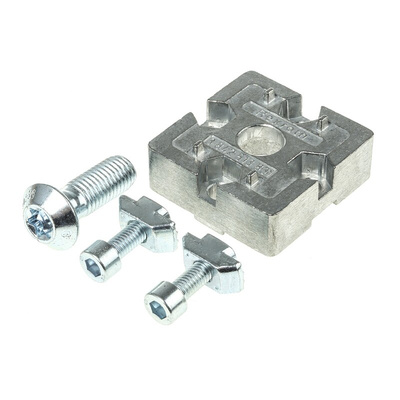

Make your right-angle strut connections fast, but certainly not loose, with this handy connecting component from Bosch Rexroth. The die-cast T-connector sits flush between a pair of struts to make joins neat. Two T-head bolts fit snugly in all 10mm grooves and a self-tapping screw creates a tight coupling, so making a strong join at a 90° angle is no bother. As the connector works on any face of your square 45mm strut, along any point along the groove, it's a versatile bit of kit.

Features & Benefits

• Conductive metal keeps your frames ESD-safe
• Withstands a maximum force of 9000N and 200Nm for use with heavy-duty applications

Applications

• Garages and workshops
• IT systems
• Research labs

What's this connecting component made from?

The unit is made from zinc with steel fixings to keep your strut joints durable and sturdy.

Datasheet
