3842532195, Bosch Rexroth M6 T-Connector Connecting Component, Strut Profile 40 mm, Groove Size 10mm

T-Connectors

For connecting 30x30, 40x40, 45x45 and 50x50 strut profiles at 90°
No profile end finishing preparation
30x30 profile needs core hole thread to accept the M8 x 30mm, fastener provided
For the 40x40, 45x45 and 50x50 size a self-tapping fastener is provided
All fasteners are included
Material: 30 & 40 Die-cast Aluminium; 45 & 50 Die-cast Zinc

Bosch Rexroth Connecting Component, T-Connector Type, M6 Thread - MGE Series - 3842532195

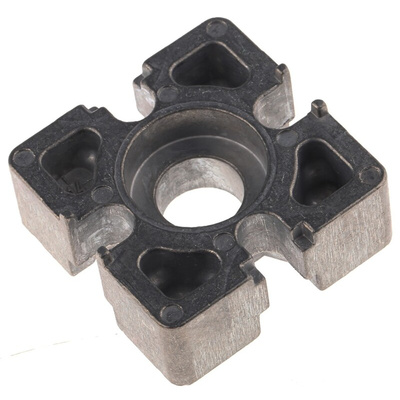

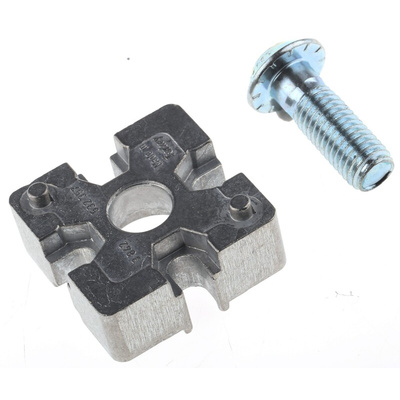

Building a strong metal frame takes just a jiffy with this connecting component from Bosch Rexroth. The die-cast bracket is shaped to fix 40mm struts squarely together. Pre-drilled holes and rounded corners mean you don't need to do any prep work to get your desired finish. Self-tapping screws are on hand to cut a tight thread, while T-head bolts grip inside your strut's groove, so your 90° angle joins are tough enough to withstand a maximum force of 9000N. No specialist tools are needed, making this a handy choice for simplifying fixings.

Features & Benefits

• Aluminium material is tough and resistant to corrosion
• Conductivity makes it handy for ESD-safe applications

Applications

• Electronic assembly
• Industrial automation
• Safety systems

What groove size does this connecting component fit?

For wide compatibility, the device is made for 10mm grooves, which are frequently found on 40mm struts.
