RS PRO Panel Mount PID Temperature Controller, 96 x 96mm, 3 Output Relay, SSR, 100 → 240 V ac Supply Voltage, Регулятор температуры

RS PRO 1/4 DIN Rail PID Temperature Controller, 96 x 96 mm, 3 Output SSR, 100 - 240 V AC Supply Voltage

Correct out-of-sync process temperatures with this 1/4 DIN rail PID temperature controller from RS PRO. PID stands for proportional integral derivative, an advanced system that lets you run equipment at much more accurate temperatures than is possible with a standard controller.

While basic devices only emit a signal when process temperatures drop below a specific point, PID controllers use a mathematical formula to prevent the process temperature from deviating from the user setpoint. Their ability to offset sudden heat fluctuations makes these controllers well-suited for a multitude of industries, from textile and food production to petrochemistry and plastics.

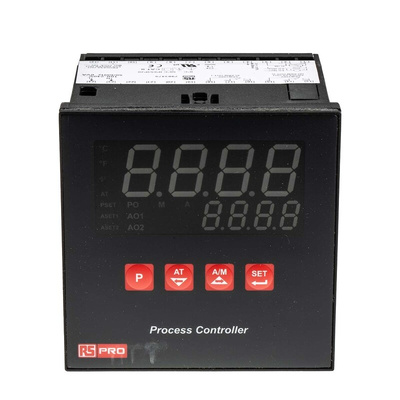

This clever temperature controller has a clear, easy-to-read LED display with simple four-button operation on the front panel. Simply enter a setpoint and the controller will respond to sensor feedback and adjust the process temperature of any hooked-up equipment as needed. This controller has undergone strict quality controls for safety and reliability.

Features and Benefits

• RS PRO PID temperature controller
• SSR and relay output type
• Panel mounting type
• Three outputs
• Supply voltage of 100 to 240 V AC
• Measures 96 x 96 mm
• Panel depth of 87.5 mm
• Temperature range of 0°C to +50°C
• LED display
• Input types RTD, Universal Input TC, Voltage/Current (DC)
• Programmable heating or cooling functions for control output
• Selectable alarm functions for alarm output
• Control types on/off, P, PD, PI, PID controller
• Additional functionality on/off
• Communication module not available
• IP20 and IP65 rated (dust-tight, splash-proof)
