RS PRO Polyester Side Drum Heating Jacket, 370 x 1650mm, 105l, Нагревательный элемент

Silicone Drum Heaters

Silicone drum heaters are used to reduce the viscosity of liquids, a maximum of 3 can be applied to 200 litre drums to either speed up the melting process or for even heat distribution, class II double insulated.
The drum heaters reduces the viscosity of materials such as soaps, fats, foodstuffs, varnishes and chemicals allowing them to be pumped or poured with ease.

Silicone rubber insulated
Double insulated construction
0-90̊C capillary thermostat
Standard sizes; 25L, 50L, 150L and 200L
Moisture and chemical resistant
Simple spring fixing
2 meter power cable
IP40 protection

Note

Excessive heat may be harmful to some materials

RS PRO 400W Drum Heater (1650 x 370mm)

A durable and resilient Polyurethane Nylon drum heating element designed for the reduction of the viscosity of liquids to make it easier to pump or pour and intended to fit a drum size of 105L.

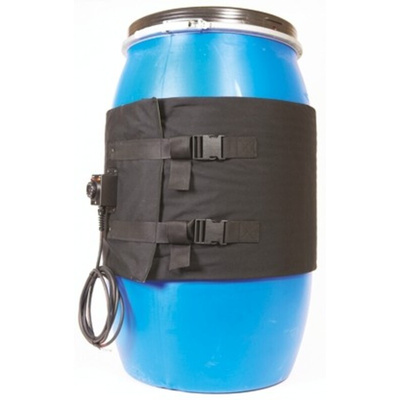

The heating element comes in a 1650 mm x 370 mm adjustable jacket complete with quick-release buckles for easy attachment to the drum.
Constructed with Teflon Polyester insulation providing and even distribution of heat and minimum heat loss. A capillary thermostat regulates temperatures up to a maximum operating temperature of 90°C.
Supplied with a 4m power cable and an IP40 rating for protection from small objects and wires greater than 1mm in size.
This heating element is commonly found in the food production and manufacturing industries. You can use it to warm foodstuffs, soaps, varnishes, chemicals and other substances.

Features and Benefits

• Drum Heating element (105L)


• Polyurethane nylon


• Teflon Polyester insulation


• Power rating of 400 W


• Overall length of 1650 mm


• Overall width of 370 mm


• Maximum operating temperature of +90°C


• Capillary thermostat


• Adjustable quick-release buckles


• IP40 rating


• 4m power cable

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
