RS PRO Heating Element, 50mm, 5 W, 12 V, Нагревательный элемент

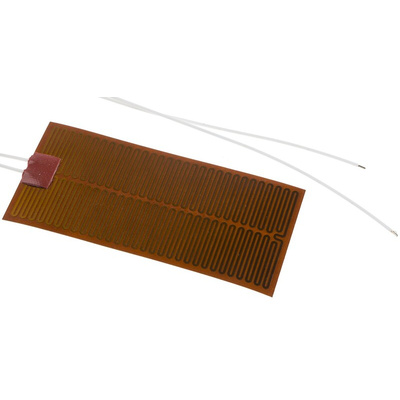

RS PRO Heating Element

This heating element from RS PRO is ideal in situations where you need to generate heat in a very compact space. The heater mat is a fraction of a millimetre thick and has very little thermal mass, allowing it to respond very quickly to the application or removal of power. As the Kapton© polyimide material provides excellent electrical insulation, you can safely attach it to a metal system and transfer heat directly into it.
This heating element is ideal for military, medical, lab or photographic applications thanks to its low out-gassing properties and ease of cleaning and sterilisation. The element supports a broad operating temperature range of -60°C to +200°C, making it suitable for a range of demanding applications. It's ideally used with a thermocouple or limit switch to sense and control the temperature.

Features and Benefits

• Suitable for laboratory research, LCD displays and computer equipment, medical sterilisation, military and aerospace applications and photographic and optical equipment
• Heater mat element type
• Length of 50 mm
• Polyimide material
• Maximum operating temperature of +200°C
• Thickness of 0.2 mm
• Width of 100 mm

RS Pro Datasheet
