190.000.68, Werma 190 Series Bracket Electronic Sounder, 230 V ac, 110dB at 1 m, IP65, AC, 32-Tone

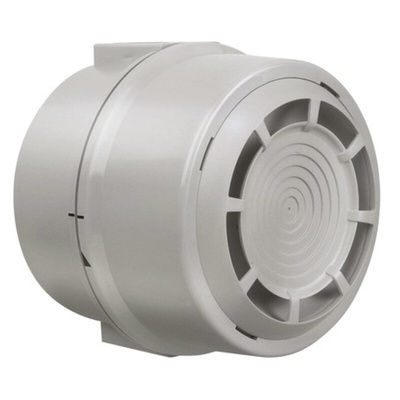

Multi-tone Sounder 190 Series

The 190 series Multi-Tone Sounder offers a large choice of international signal tones for the widest spectrum of applications. It has been designed in the same housing as the 890 series, so can therefore be effortlessly combined with up to three beacons to provide an audible and optical solution.

32 tones for a diverse range of applications
Adjustable sound output up to 110 dB
3 tones can be triggered externally
IP65 protection
Fixing brackets available for easy combination with 890 series Permanent Beacon/Traffic Lights

WERMA Electronic Sounder, PC and ABS Housing Material, Screw Terminals - 190 Series - 190.000.68

For clear audio signalling in your work areas, choose this electronic sounder from WERMA. It delivers a sound output up to 110dB, so it draws attention easily, even at a distance. Thanks to its durable PC and ABS housing, this unit holds out against wear and impact, making it the right choice for harsh environments. A choice of 32 different tones means it's a versatile piece of kit. This module's screw terminals make it a cinch to wire, as all you need is a screwdriver.

Features & Benefits

• IP65 rating tells you it's dustproof and withstands low-pressure water jets
• Acoustic service life of at least 5,000 hours for long-term performance
• Compact dimensions of 169 (H) x 127 (W) x 150mm (diameter) for space efficiency in tight spots

Applications

• Assembly lines
• Automotive manufacturing
• Transportation

How much current does this electronic sounder consume?

This component has a low current consumption of 30mA for energy efficiency.
