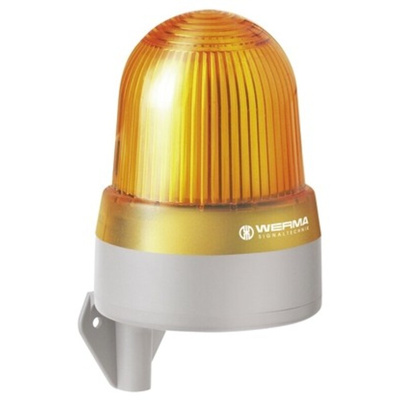

433.300.60, Werma 433 Series Yellow Sounder Beacon, 115 → 230 V ac, IP65, Bracket Mount, 108dB at 1 Metre

433 Series Sounder/Beacon Combination - Static / Flashing / EVS

The Werma 433 series Sounder/Beacon Combination has a multi-tone sounder capable of 32 different tones and an LED beacon offering 3 different light effects: static, flashing and EVS. The 433 series sounder beacon also allows for optical and audible warning to be triggered separately for two stage signalling.

3 light effects can be triggered externally
32 tones can be set to meet the requirements of the application, one tone can be triggered externally
Adjustable sound output up to 112 dB
Optical and audible warning can be separately triggered for two stage signalling
Optional integrated bracket for simple wall mounting without additional accessories
LEDs have life duration of up to 50,000 hours
Wall mounted
IP65 protection

WERMA Yellow Sounder Beacon, Flashing Light Effect, 115 to 230V AC - 433 Series - 433.300.60

Mount this sounder beacon from WERMA in your workplace to alert workers when a hazard occurs. The bright LED (light-emitting diode) bulb flashes through the yellow lens to attract the eye of nearby personnel. The sounder acts as an audible alarm, emitting 112dB (decibels) of sound so it can be heard clearly throughout the surrounding area. It can be mounted to a wall or surface for versatile installation, and its screw terminals ensure a secure connection. A sounder beacon like this one is commonly used to alert personnel to machine process changes or to warn people of a moving hazard.

Features & Benefits

• IP65 (ingress protection) rating certifies the unit is dust-tight and protected from low-pressure water jets
• Long lifespan of up to 50,000 hours for long-lasting use
• PC (polycarbonate) lens and ABS (acrylonitrile butadiene styrene) base material are durable and impact-resistant

Applications

• Manufacturing lines
• Maintenance work
• Chemical plants

Does this sounder beacon have a selection of tones?

Yes, this sounder beacon has 32 tones to choose from. Select the best one for your application by flicking the switch located on the PCB (printed circuit board).
