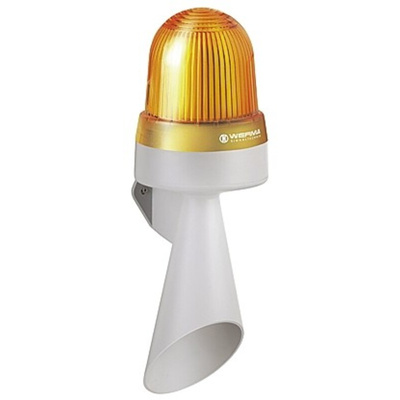

435.300.70, Werma Yellow Horn Beacon, 10 → 48 V ac, IP65, Wall Mount, 108dB at 1 Metre

435 Series Horn/Beacon Combination - Static / Flashing / EVS

The Werma 435 series Horn/Beacon Combination has an electronic horn and an LED beacon offering 3 different light effects: static, flashing and EVS. The 435 series horn/beacon also allows for optical and audible warning to be triggered separately for two stage signalling.

3 light effects can be triggered externally
Maintenance-free electronic horn with long life duration of up to 5,000 hrs
Sound output can be set to meet the requirements of the application
Optical and audible warning can be separately triggered for two stage signalling
Optional integrated bracket for simple wall mounting without additional accessories
LEDs have life duration of up to 50,000 hours
Wall mounted
IP65 protection

WERMA Horn-Beacon Combination, Yellow Lens Colour, LED Bulb Type - 435 Series - 435.300.70

Use this horn-beacon combination unit from WERMA to deliver warning signals in industrial settings. The beacon has a yellow LED bulb that produces flashing, steady or EVS (random flashing) light effects for versatile signalling. As its horn has a maximum volume of 108dB at 1m, it's easy to hear in busy work environments. An IP65 rating means the device is resistant to dust and low-pressure water jets, so it will perform reliably in harsh conditions.

Features & Benefits

• Designed for wall mounting for ease of installation
• Housing made of an ABS and PC blend for resistance to impact and wear
• Wide operating temperature range between -30°C and +50°C for use in demanding environments

Applications

• Construction industry
• Processing plants
• Factory floors

What's the supply voltage of this unit?

This unit's supply voltage is 10 to 48V AC/DC, making it suitable for use in low-power applications.

LED/Horn

Yellow LED 3x Beacon/Horn 10/48V

Multi-function Led Beacon with Horn Data Sheet

Machine Guarding and Safety Range Overview

Datasheet - 435.300.70

Instruction Sheet - 435.300.70
