435.100.60, Werma 435 Series Red Horn Beacon, 115 → 230 V ac, IP65, Bracket Mount, 108dB at 1 Metre

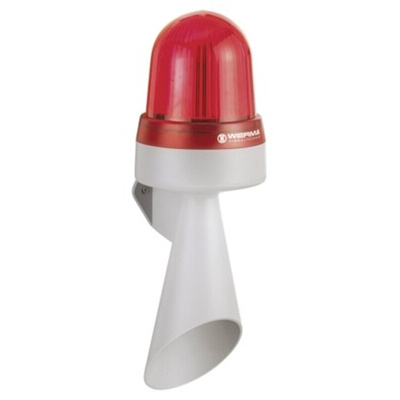

WERMA Red LED Horn Beacon, 108dB, 115V to 230V AC - 435 Series - 435.100.60

Call attention to immediate danger with this red LED horn beacon from WERMA. It comes with static, steady and irregular flashing light effects so you can choose the signal that best suits your application. The electronic horn has a loud sound output of up to 108dB (decibels), so it's clearly audible even in noisy environments. Thanks to its integrated wall bracket, the beacon is simple to install.

Features & Benefits

• PC (polycarbonate) and ABS (acrylonitrile butadiene styrene) housing material for resistance to impact and wear
• IP65 (ingress protection) rating means it's dust-tight and protected against low-pressure water jets
• Wide operating temperature range of -30°C to +50°C for use in hot and cold environments
• LED consumes just 75mA of current for energy efficiency
• Horn has a long lifespan of 5,000 hours for long-lasting performance

Applications

• Fire alarm systems
• Industrial automation
• Warehouses and loading bays

Can I trigger the light and horn separately?

Yes, the LED light and horn can be triggered individually on this beacon. This makes it suitable for use in two-stage signalling applications.

LED/Horn

Red LED 3x Beacon/Horn 115/230V

Multi-function Led Beacon with Horn Data Sheet

Machine Guarding and Safety Range Overview

Datasheet - 435.100.60

Instruction Sheet - 435.100.60
