695.210.55, Werma CleanSIGN Series Red/Green/Yellow Buzzer Signal Tower, 3 Lights, 24 V dc, Base Mount, Сигнальная колонна

CleanSIGN Signal Tower - RGY LEDs

LED signal tower for use in the food, pharmaceutical and cosmetic industry as well as in cleanroom applications (IP67/69K)
Hygienic and cleaning-friendly design
Developed in accordance EHEDG directives
Resistant to cleaning agents and with FDA approval
Permanent light in red, yellow and green (RGY LEDs)
Complete illumination in one colour possible (can be triggered externally)
Colour distribution can be set in any order and adjusted via DIP switch as required
Flexible colour distribution thanks to electronic modularity
User-friendly one piece mounting
Integrated continuous tone buzzer (85 dB)
Base mount (stock no. 798-3902), wall mount (stock no. 700-9228)

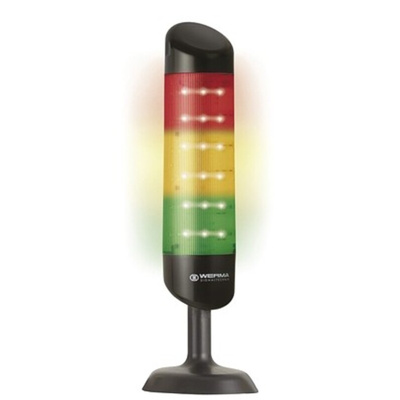

WERMA Signal Tower, 3 Light Elements, Integrated Buzzer - CleanSIGN Series - 695.210.55

Indicate the status of your industrial equipment with this tri-colour signal tower from WERMA. As you can set the order of its red, green and yellow lenses, you can tailor it to your application's needs. The integrated buzzer has a maximum volume of 85dB at 1m, giving you an audible warning in areas where visibility is poor.

Features & Benefits

• IP69K rating means it's dust-tight and resistant to high-pressure, high-temperature water jets
• Current consumption of 260mA for energy efficiency
• Designed for base mounting for ease of installation
• Wide operating temperature range between -30°C and +50°C for use in demanding conditions

Applications

• Food production
• Pharmaceutical laboratories
• Cosmetics manufacturing
• Cleanrooms

What are the dimensions of this unit?

The base of this unit measures 152 (diameter) x 112mm (width), while its height is 390mm. This means it will take up minimal space yet is tall enough for good visibility.
