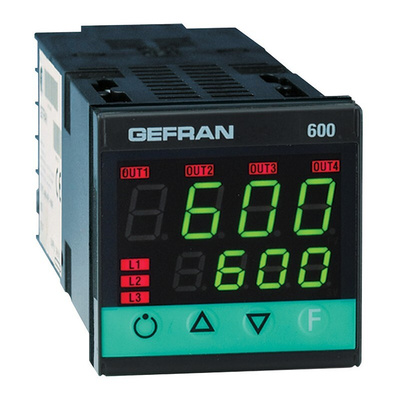

600-R-D-0-0-1, Gefran 600 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 2 Output Logic, Relay, 100 → 240 V ac Supply Voltage, Регулятор температуры

Gefran Temperature Controller

The Gefran 600 series temperature controller has a supply voltage ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 48mm (1/8 DIN) device. It has 2 outputs where the first output is a relay and the second is logic. This controller supports thermocouple configuration via complete operator faceplate. The function block formatting facilitates simplified programming. It is enabled with auto-detection of hardware configuration that automatically hides irrelevant parameters and helps you to focus on setting the alarm and set point.

Features and Benefits

Accuracy better than 0.2% F.S under nominal conditions
Alarm indication for probe short-circuit or heater break
Analogue retransmission output
Auxiliary input for CT (TA) (50mAac)
Hot/cold function with cooling fluid selection
Optically isolated RS485 serial line supporting CENCAL or MODBUS RTU protocol
Supports Self-tuning, auto-tuning, soft-start & bump less man/auto function
Up to 4 outputs supporting relay (5A at 250Vac / 30Vdc)

Applications

Climatic cells and test benches
Cooling plants
Die-casting plants
Dryers for ceramics and construction parts
Extrusion lines
Food processing pants
Heat punches
Injection presses for plastics
Ovens
Packaging machines
Packing machines
Painting plants
Polymerization and synthetic fibre plants
Presses for rubber

Certifications

CE certified
IP65 rated
