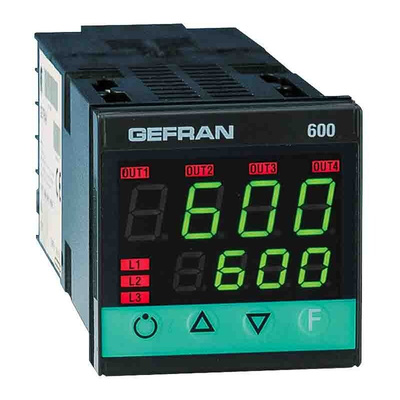

600-R-D-R-2-1, Gefran 600 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 3 Output Logic, Relay, 100 → 240 V ac Supply Voltage, Регулятор температуры

Gefran 600 Series

Gefran 600 series of Microprocessor Controllers support thermocouple configuration via the complete operator faceplate. This series of Microprocessor Controllers are equipped with a Lexan© membrane faceplate to provide a frontal IP65 rating. Function block formatting allows for simplified programming. Auto-Detection of hardware configuration adds the benefit of automatically hiding irrelevant parameters leaving you to focus on setting the alarm & setpoint.

48x48 (1/16 DIN) panel cutout supported
Microprocessor Controller faceplate supports an IP65 rating
Up to 4 outputs supporting relay (5A at 250Vac / 30Vdc)
Accuracy better than 0.2% F.S under nomimal conditions
Supports Self-tuning, auto-tuning, soft-start & bumpless man/auto function
Optically isolated RS485 serial line supporting Cencal or MODBUS RTU protocol
Auxiliary input for CT (TA) (50mAac)
Alarm indication for probe short-circuit or heater break
Analogue retransmission output
Hot / cold function with cooling fluid selection

Main applications include:

Ovens
Extrusion lines
Packing & packaging machines
Cooling plants
Polymerization & synthetic fiber plants
Heat punches
